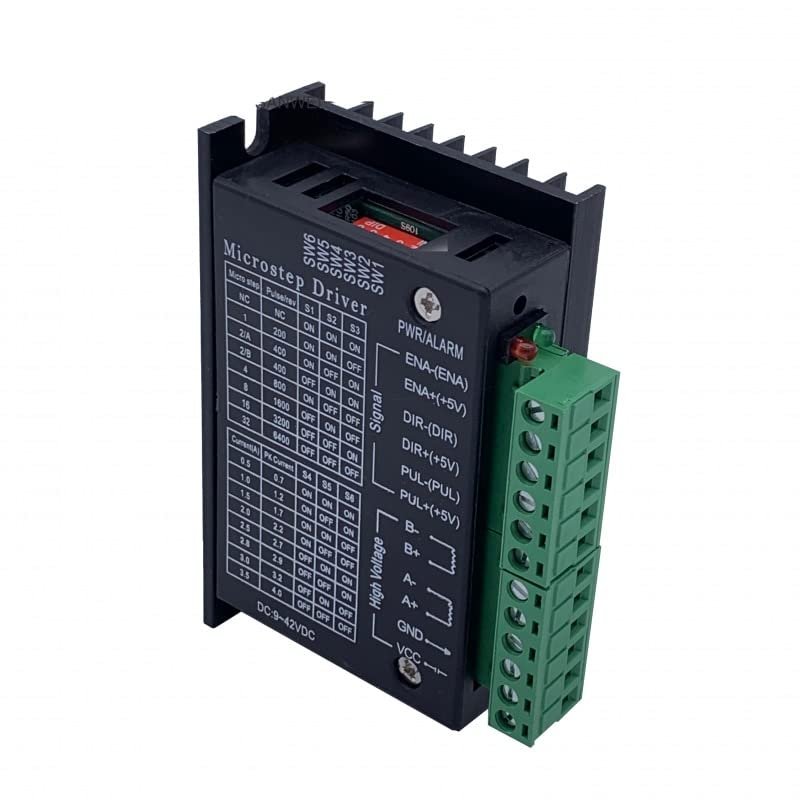

42/57 stepper motor driver control board TB6600 upgrade version 32 subdivision 4.0A 42V pulse 3-24V

Description

• Power supply: DC
• Model number: TB6600
• Motor type: AC Motor
• Origin: Mainland China
• Certification: CE,RoHS

The TB6600 upgrade version driver is a professional two-phase hybrid stepping motor driver, which can be adapted to domestic and foreign
Various brands of four-wire, six-wire, and eight-wire two-phase hybrid stepping motors with currents of 4.0A and below and outer diameters of 39, 42, 57 mm. Suitable for all kinds of small and medium-sized automation equipment and instruments, such as: engraving machine, marking machine, cutting machine, laser phototypesetting, plotter, CNC machine tool, holding device, etc. It works well in equipment where users expect low-cost and high-current operation.
Features
Signal input: single-ended, pulse/direction
Subdivision is optional: 1/2/4/8/16/32 subdivision
Output current: 0.5A-4.0A
Input voltage: 9-42VDC
The current is automatically halved when at rest
It can drive 4, 6, 8 wire two-phase and four-phase stepper motors
Optocoupler isolation signal input, strong anti-interference ability
It has the functions of overheating, overcurrent, undervoltage lockout, input voltage anti-reverse connection protection, etc.
Small size, easy to install
External signal 3.3-24V universal, no need for series resistance
Control signal connection:
PUL+: Pulse signal input is positive. PUL-: Pulse signal input is negative.
DIR+: The positive and negative control of the motor is positive. DIR-: Motor positive and reverse control negative.
ENA+: Motor offline control positive (generally not connected). ENA-: Motor off-line control negative (generally not connected).
Motor winding connection
A+: Connect the A+ phase of the motor winding. A-: Connect the A-phase of the motor winding.
B+: Connect the B+ phase of the motor winding. B-: Connect the B-phase of the motor winding.
Power supply voltage connection:
VCC: positive terminal of power supply ''+'' GND: negative terminal of power supply ''-''
Note: DC range: 9-42V is recommended. It can reach 5
