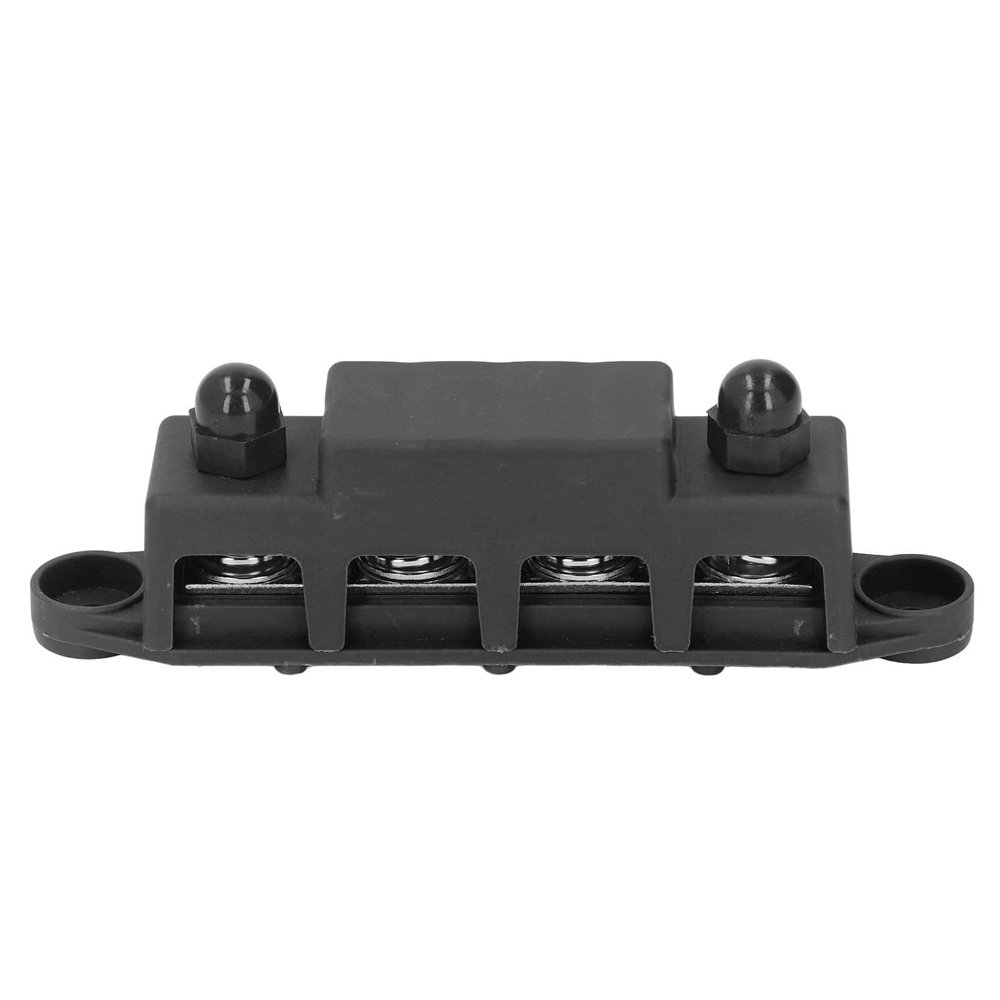

4 Position Distribution Block, Power Distribution Block 4 Stud M10 Heavy Duty Bus Bar 48VDC 250A for Automobile RV Yacht, Distribution Blocks (Black)

Description

• BUS BAR: This power busbar can be used to collect negative wire harnesses and wires for neat and storage and wiring.
• BRASS CONDUCTOR: The busbar adopts brass plate as the conductor, which has low resistance, good conductivity, and
• WIDE APPLICATIONS: Can be used for automobiles, RVs, ships, electrical appliances, etc., to meet various power system requirements.
• M10 TERMINALS: This distribution block has standard M10 screw terminals, making it easy to connect and stable in performance.
• WORK PARAMETERS: 4 position power busbar, with a maximum voltage of DC48V and a rated current of 250A for the whole electrical block.

Spec:
Item Type: Bus Bar
Product Specification: M10
Product Material: ABS, Zinc Alloy, Brass
Maximum Voltage: 48VDC
Each Stud Rated Current: 62.5A
Whole Block Rated Current: 250A
Auxiliary Terminal Screw Current: 20A
Product Function: Gather the wiring harnesses together and reasonably store the wires inside the vehicle and ship
Application: Automobiles, RVs, ships, yachts, etc, power supply systems
Size: Approx. 170 x 33 x 44mm / 6.7 x 1.3 x 1.7in

PackageList:
1 x Bus Bar
