3x3 HDMI Video Wall Controller DVI TV Wall Processor with Audio 1080P 60Hz 2x2 2x3 2x4 1x3 1x4 1x5 TV Wall 9 Screen Video Wall Stitching Processor TV Splicing Box 180 Degree Rotate

Description

• AA:Support HDMI and DVI two-way signal input free choice: support 2-way signal input 9-way HDMI signal output, all the way DVI all the way HDMI signal input, free to switch the output signal.
• BB: audio separation audio independent output: audio separation technology, improve the quality of the audio signal, 3.5mm stereo / fiber optic audio, two signals at the same time the output of independent audio output, to bring users a better listening experience.
• CC: Remote control / press Kin / RS232: a variety of control methods, remote control can also be manually keyed and controlled through the RS232 serial port, signal switching, by your control. Compatible devices plug and play: support set-top boxes, desktops, laptops and other devices with HDMI interface to connect the TV, monitor, projector and other display devices with HDMI interface.
• DD: safety protection and high efficiency: anti-static technology to prevent damage to electronic components caused by static electricity. Anti-surge technology, enhance product stability, prevent surge impact. 1080P/60Hz, enjoy high-definition visual experience of the world of fine. Pure hardware equipment, multiple splicing modes, plug and play.
• EE: big screen era, one key splicing, power failure memory function: no need for computer control, one-key splicing function, a variety of splicing modes, to meet the application requirements, applicable to more scenarios. Multiple combination splicing modes: 1x1/1x2/1x3/1x4/1x5/1x6/1x7/2x1/2x2/2x3/2x4/3x1/3x2/3x3/4x1/4x2/5x1/6x1.

Introduction:

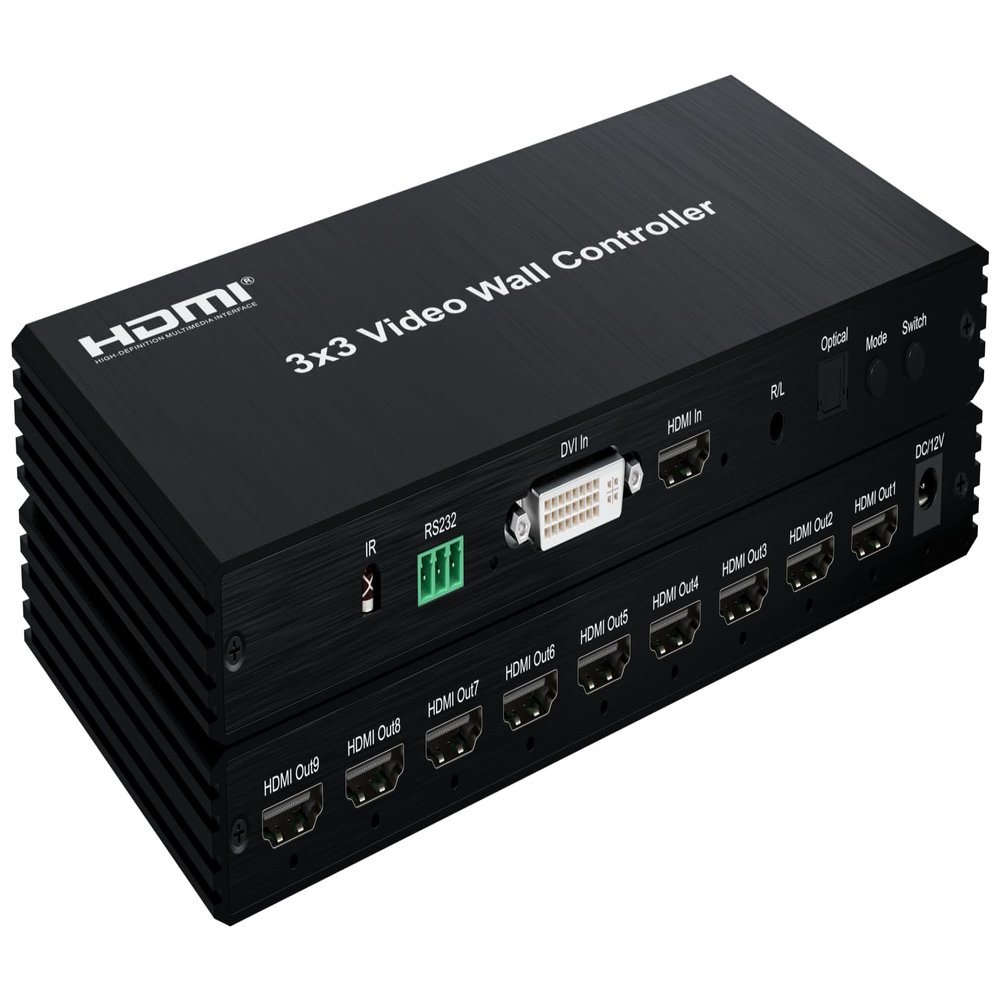

This 3x3 video wall controller, supports 1 HDMI/DVI input and 9 HDMI outputs, the main function is to divide a single complete HDMI HD image signal into 9 display units (Rear projection screens, LCD TV.etc.), to make them form a large dynamic image screen.
Note Pls: This product does not support vertical screens splicing. If you have any demand,please contact us first.
Features:
* Support HDMI/DVI video source input;
* Support 9-ways HDMI output;
* With power off memory function;
* Support multiple splicing modes, easy to handle, plug and play;
Support RS232/IR control.
Specifications:
HDMI input resolution :1080P/720P/576p/576i/480P
HDMI output resolution:support 1920x1080/60Hz
Support video formats: RGB,YCbCr444,YCbCr442,YCbCr440
Support audio formats:Stereo
Max bandwidth :4.95Gbit/s(1080P)
Maximum Transfer Rate:3.96Gbit/s(1080P)
Input/output cable length :15M,AWG26 HDMI standard cable
Max working current : 0.4A Power adapter specifications ......... input AC (50Hz, 60Hz) 100V-240V Output 12V DC/1A
Operating temperature range: (-10 +45)
Dimension (L x W x H) : 226x110x25(mm)
Package include:
1 x 3x3 Video Wall Controller
1 x Remote contro
1 x 12V DC power adaptor
1 x User manual
