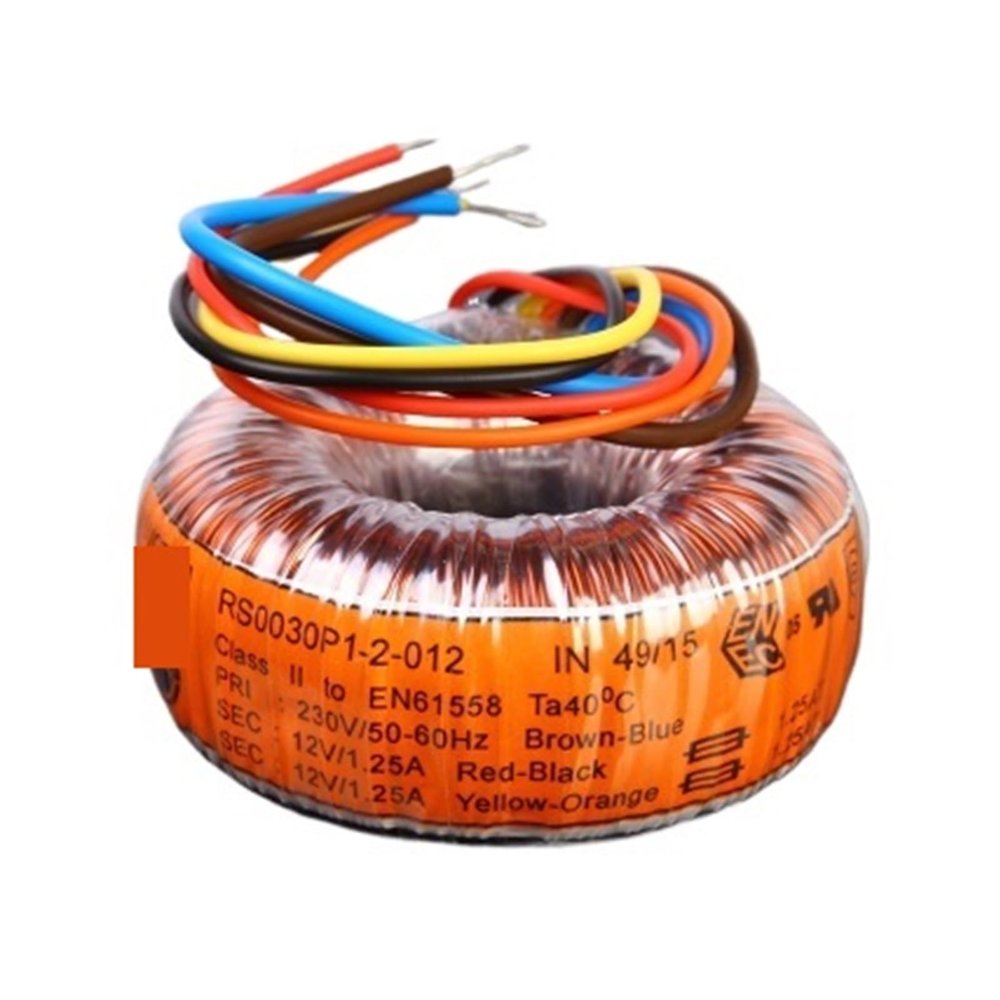

Aoleaby 30W Dual 6V 9V 12V 15V 18V 25V Toroidal Transformer Ring Cow 30VA(30W Dual 12V)

Description

• The ring transformer uses a magnetic core with high magnetic permeability and low coercivity
• The ring transformer uses pure copper coils, high current supply and stable voltage
• Less NoiseLow Temperature RiseLong Service Life
• Toroidal transformers suited for power supply circuitry of electric machines and electronics devices with low nonload losses and weight;
• Toroidal power transformers for Audio, Electrical control

Color Classification:
30W Dual 9V
30W Dual 12V
30W Dual 15V
30W Dual 18V
30W Dual 25V
Open toroidal transformer with single 230 V AC 50/60 Hz primary winding Two secondary windings can be used in series, parallel or individually. Compared with the traditional lamination type, it has small size and light weight, magnetic field, ultra-low iron loss, and double-insulated main conductor.
EN60065, VDE 0551, VDE 0550 and BS415 standards. Comes with full installation kit.
Primary rated voltage: 230V AC
Rated power: 30VA
Number of outputs: 2
Secondary rated voltage: 2x 6/9/12/15/18/25V AC
Termination Type: Copper Wire Terminated Wire
Weight: about 0.45Kg.
Minimum temperature: 0C
Size: about 70mm in diameter x 32mm in height
Maximum temperature: +120C
Screw size: M6X44mm
Conductor: PVC insulated, 150mm long, 10mm galvanized bare wire
