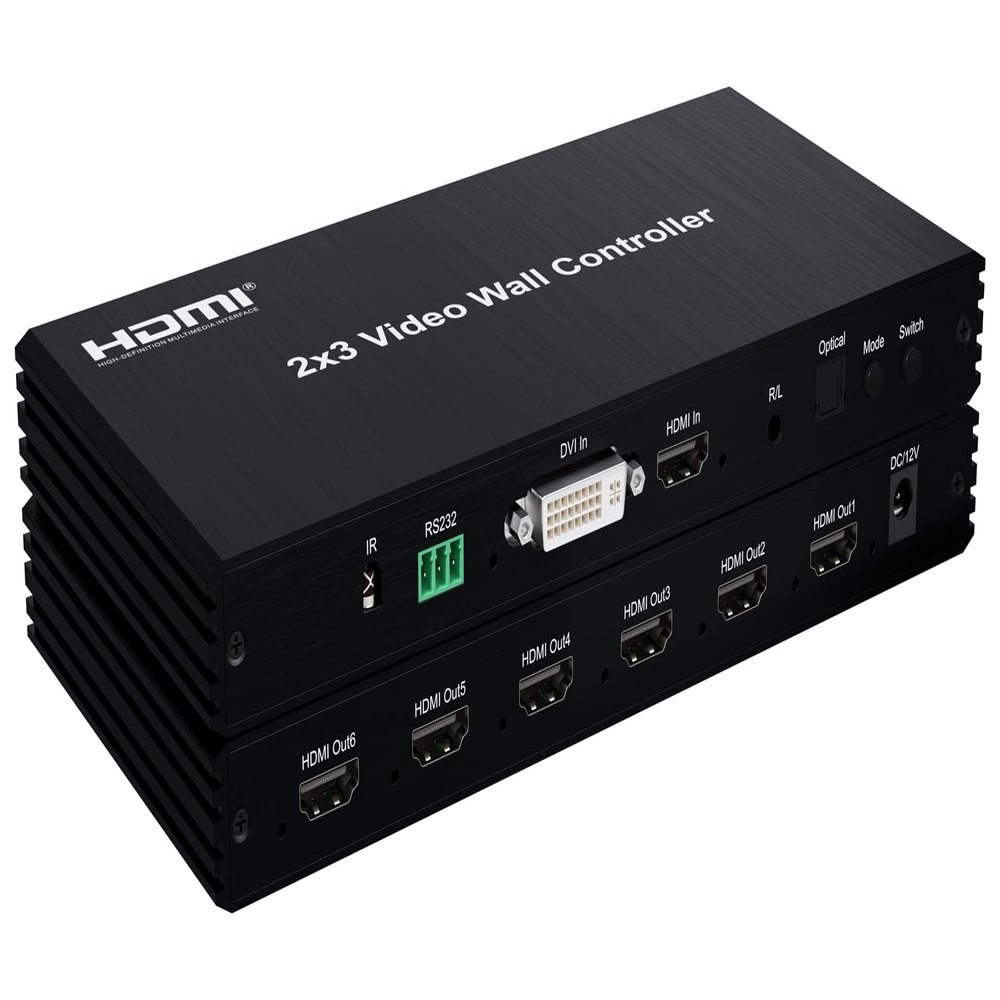

2x3 HDMI Video Wall Controller DVI TV Wall Processor with Audio 1080P 60Hz 2x3 2x2 2x1 1x2 3x2 TV Wall 6 Screen Video Wall Stitching Processor TV Splicing Box 180 Degree Rotate

Description

• AA:Support HDMI and DVI two-way signal input free choice: support 2-way signal input 6-way HDMI signal output, all the way DVI all the way HDMI signal input, free to switch the output signal.
• BB:Audio separation audio independent output: audio separation technology, improve the quality of the audio signal, 3.5mm stereo/optical audio, two signals at the same time the output of independent audio output, to bring users a better listening experience.
• CC:Remote Control/Pushbutton/RS232: Multiple control modes, remote control or manual pushbutton and RS232 serial port control, signal switching, under your control. Compatible devices plug and play: support set-top boxes, desktops, laptops and other devices with HDMI interface to connect TVs, monitors, projectors and other display devices with HDMI interface.
• DD:Safety protection and high efficiency: anti-static technology to prevent electronic components from being damaged by static electricity. Anti-surge technology, enhance the stability of the product, to prevent surge impact. 1080P/60Hz, enjoy high-definition visual experience of the world of fine. Pure hardware equipment, a variety of splicing modes, plug and play.
• EE:Big screen era, one key splicing, power failure memory function: no need for computer control, one key splicing function, a variety of splicing modes, to meet the application requirements, applicable to more scenes. Multiple combination splicing modes: 1x1/1x2/1x3/1x4/1x5/1x6/2x1/2x2/2x3/3x1/3x2/4x1/5x1/6x1.

Product Description:
This 2x3 splicer, supports 1 HDMI or DVI input, 6 HDMI output, the main function is to divide a complete HDMI, DVI high-definition image signals to six video display units (such as rear projection units, LCD TVs, etc.) to complete the six HDMI high-definition video display units to form a large dynamic image screen. Product Features.
Support HDMI and DVI input;
Support 6-channel HDMI output;
With power failure memory function;
Support a variety of conventional splicing, easy to operate, plug and play;
Support RS232/IR control.
Specification.
HDMI input resolution: 1080P/720P/576p/576i/480P
HDMI output resolution: the highest support 1920x1080/60Hz
Support video format: RGB,YCbCr444,YCbCr442,YCbCr440
Support Audio Format:Stereo
Maximum wideband transmission:4.95Gbit/s(1080P)
Maximum transmission rate:3.96Gbit/s(1080P)
Input/output cable length: 15 metres AWG26 HDMI standard cable
Maximum Operating Current: 280mA
Power Adapter Specifications: Input AC (50Hz, 60Hz) 100V-240V; Output: 12V DC/1A
Operating temperature range: (-10 +45)
Dimensions:226x110x25(mm)
Weight :500g
Packing List.
1: 2x3 splicer 1 set
2: 1 remote control
3: 12V DC power adapter 1pc
4: 1 user manual
RS232 serial cable (optional)
