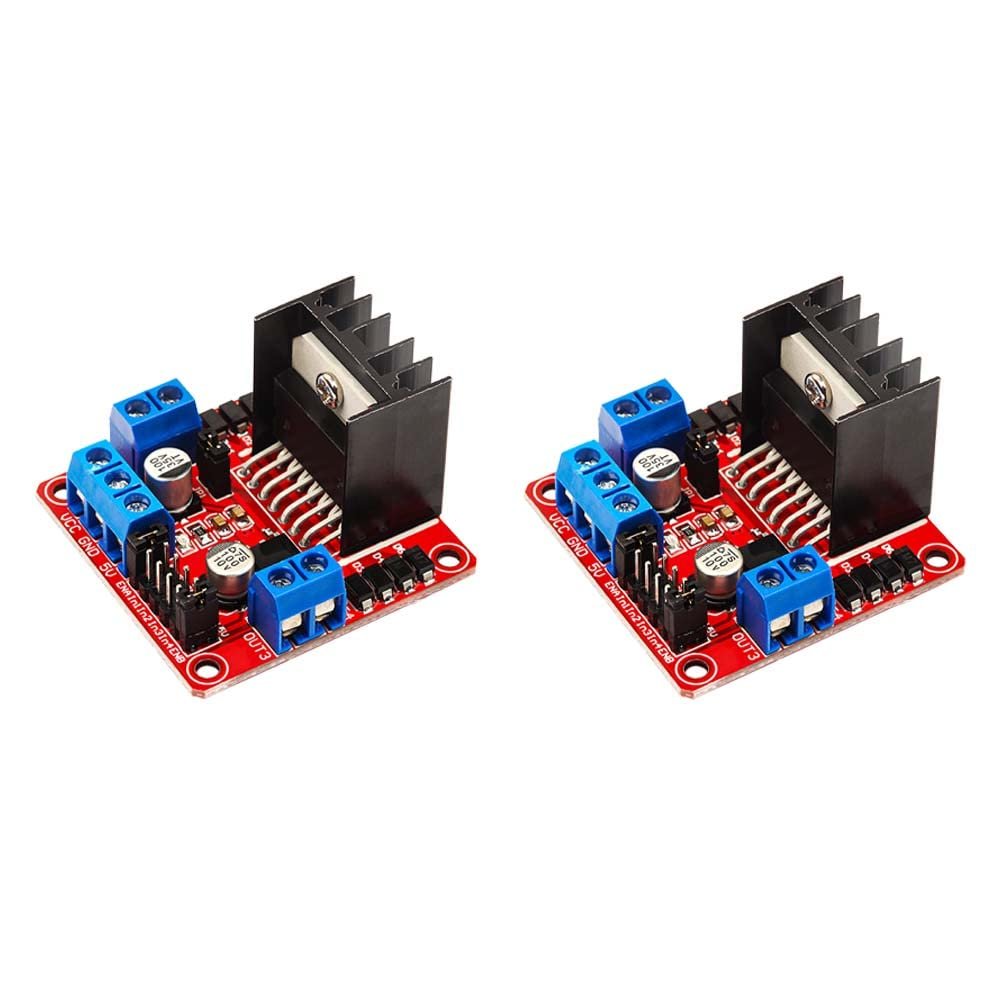

2pcs L298N Dual H Bridge PWM Stepper Motor Drive Controller Board Module

QIYQTIG

2pcs L298N Dual H Bridge PWM Stepper Motor Drive Controller Board Module

335,52 kr. 559,20 kr.
Buying Bulk?
  • Order within 10 hours and 25 minutes to get between June 11 - June 17
  • Tracked Shipping on All Orders
  • 14-Day Returns
  • Secure Payments
  • 24/7 Customer Support
Buying Bulk?

Description

  • This L298N-based driver module is a high voltage, high current dual full-bridge driver designed to accept standard TTL logic levels and drive inductive loads such as relays, solenoids, DC and stepping motors from 5V to 35V.
  • It can easily control the DC motor speed and direction, and can also control 2-phase stepper motors. It can be used for other projects such as driving the brightness of certain lighting projects such as high powered LED arrays using Pulse Width Modulation (PWM) control.
  • Two enable inputs are provided to enable or disable the device independently of the input signals.The motor direction is controlled by sending a HIGH or LOW signal to the drive for each motor (or channel). For example for motor A, a HIGH to IN1 and a LOW to IN2 will cause it to turn in one direction, and a LOW and HIGH will cause it to turn in the other direction.
  • The module includes an onboard 5V regulator. When enabled by the jumper, the 5V is provided as an output on the power connector, and can be used as a 5V DC supply for your other circuit components. (When enabled, the module input voltage must be at least 6V). When disabled, a separate 5V input provides in order to control the logic level circuitry of this module.
  • Package Includes:2x Dual H Bridge L298N
