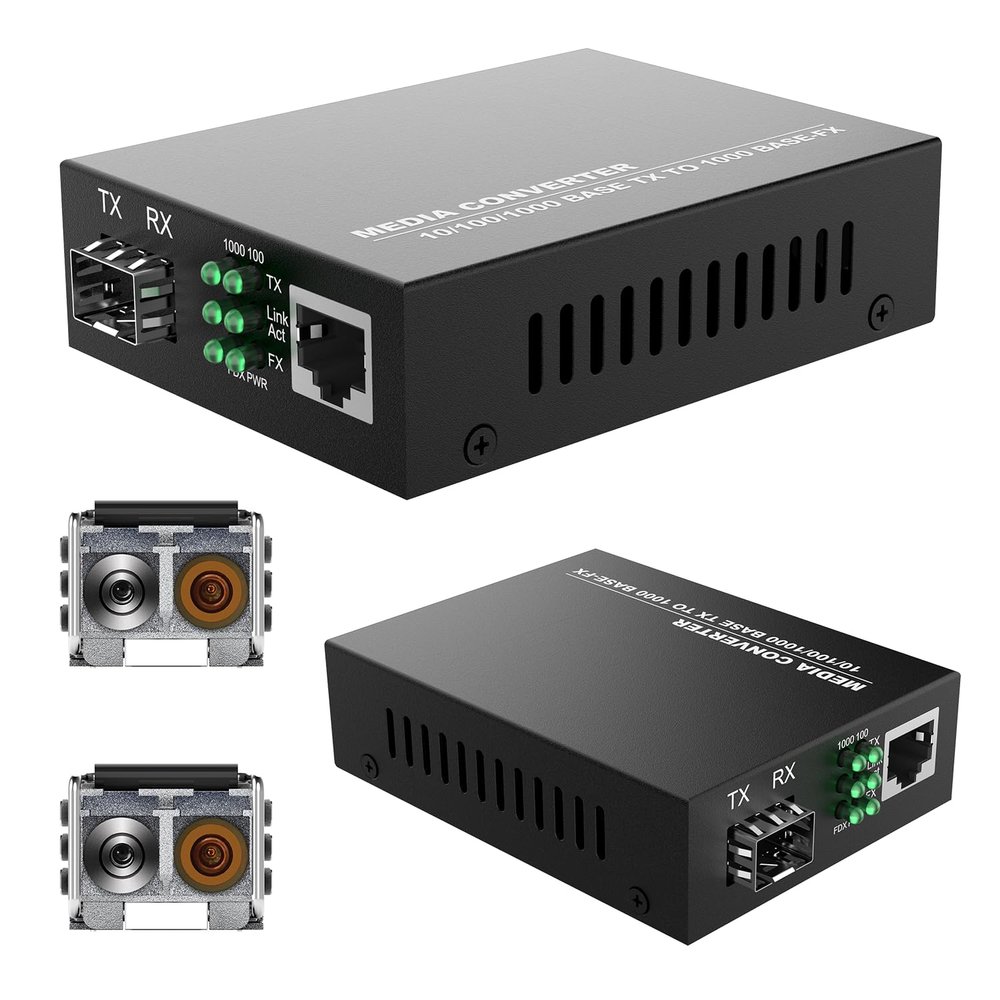

2Pack BiDi Gigabit Multi-Mode Fiber Ethernet Media Converters, with 2Pack Dual SFP LC Transceiver Module 850nm 1.25Gbps, 1000Base-SX to 10/100/1000Base-TX, LC Connector, RJ45 Interface MMF, Up to 550m

Description

• Complete Package: Includes 2 Gigabit Multi-Mode Fiber Ethernet SFP Slot media converters equipped with 2 SFP BiDi LC Dual Multi-Mode 850nm transceivers, 2 AC/DC power adapters, and a user manual. The power adapters support a wide voltage range (100V-240V) and provide a stable 5V-1A output, UL certified.
• Seamless Conversion and Application Scenarios: This fiber optic to ethernet media converter kit seamlessly converts 1000BASE-SX LC fiber to 10/100/1000 Base-T RJ-45 copper media and vice versa, ensuring versatile connectivity solutions. It supports bidirectional transmission, handling both send and receive data simultaneously, meeting high-efficiency data transmission needs. With a transmission rate of 1.25Gbps, it complies with IEEE 802.3/802.3u/802.3z/802.3ab standards, ensuring compatibility with existing network devices. Widely applicable in data centers, enterprise network expansions, surveillance systems, etc., providing stable and reliable network connectivity and expansion solutions.
• Fiber Optical Port: Features a 1.25Gbps SFP port supporting BiDi LC Dual Multi-Mode transceivers, extending connectivity up to 550 meters (includes 2 SFP SX transceivers). Designed for multimode fiber (MMF), it supports UTP/STP Cat.5e cables up to 100 meters.
• Extended Transmission Distance: Extend link distances up to 550 meters/1804 feet via OM3/OM4 multimode fiber (MMF, LC, duplex) with this ethernet fiber media converter.
• Plug and Play with Auto-Negotiation: Enjoy hassle-free setup with plug-and-play functionalitysimply connect the optical and RJ-45 ports for immediate use. The converter supports auto-negotiation for Gigabit connections over the RJ-45 port, facilitating seamless integration into various network environments. Status LEDs (TX, FX LINK/ACT, POWER, FDX) provide real-time network monitoring. Supports jumbo frame sizes up to 9K bytes and operates reliably in temperatures ranging from 0C to 60C.

Product Overview:
Enhance your network capabilities with our comprehensive Gigabit Ethernet Fiber Media Converter Kit. This kit includes everything you need to extend network coverage up to 550 meters, ensuring reliable connections.

Package Includes:
- 2 * Gigabit Ethernet Fiber Media Converters
- 2 * BiDi SFP LC Multi-Mode Dual Transceiver Modules 850nm (up to 550m transmission distance)
- 2 * DC Power Adapters (Output Voltage: 5V DC/1A)
- 1 * Product Manual and Multi-Language Quick Installation Guide

Key Features:
1. Optical Port Data Rate: Supports 1.25Gbps, seamlessly converts 10/100/1000Base-Tx to 1000Base-SX Dual LC Fiber Gigabit Media Converter.
2. Interfaces: Dual LC ports and RJ45 port supporting 10/100/1000M auto-negotiation.
3. Fiber Type: Multi-mode, ensuring compatibility with various fiber networks. Fiber Connector: Dual LC fiber, maximum transmission distance of 550 meters. Included power adapter weight: 0.35kg.
4. Excellent Functions:
- Superior Heat Dissipation: Designed with air vents on both sides and a metal enclosure for better heat dissipation, low power consumption, and long lifespan.
- Lightning Protection and Anti-Interference Capability: Strong anti-interference capability ensures high-speed and stable signal conversion.
- Standalone Design: Compact, plug-and-play setup for easy installation. Dimensions: 95x72x27mm.
- Power Adapter Safety Certification: UL/EN60950 GB4943 compliant, power consumption 3 watts. External power input: AC100V~240V.
- High-Quality Conversion Chip: Ensures reliable operation within operating temperature range of 0C to 60C and storage temperature range of -20C to 70C. Humidity tolerance: 5% to 90% RH.

Wide Applications:
- Network Extension: Ideal for extending fiber cable or bridging network solutions.
- Remote Connections: Provides robust connectivity solutions for users in isolated areas within large complexes or separate buildings.
- Secure Connection Requirements: Meets the secure connection needs of governments or enterprises where electromagnetic interference is unacceptable.

LED Indicators:
- FP (Fiber Port): Lights up at 1000Mbps fiber speed, off otherwise.
- TP (TP Port): Lights up at 1000Mbps TP speed, off otherwise.
- Link/ACT: Left side indicates fiber port link/activity, right side indicates TP port link/activity, flashes during data transmission.
- FDX (Full Duplex): Indicates active TP full-duplex mode (on), half-duplex mode (off).
- PWR (Power): Indicates DC power status (on when powered, off when not powered).

Certification and Power Supply:
- UL Certified Power Supply: Input Voltage: AC 100V~240V or DC 36~72V, 50/60Hz. Output Voltage: 5V 1A. Connector: DC Socket.

Product Size:
Compact design (Dimensions: 95 x 72 x 27mm) offers flexible installation options. Weight: 0.35kg.
