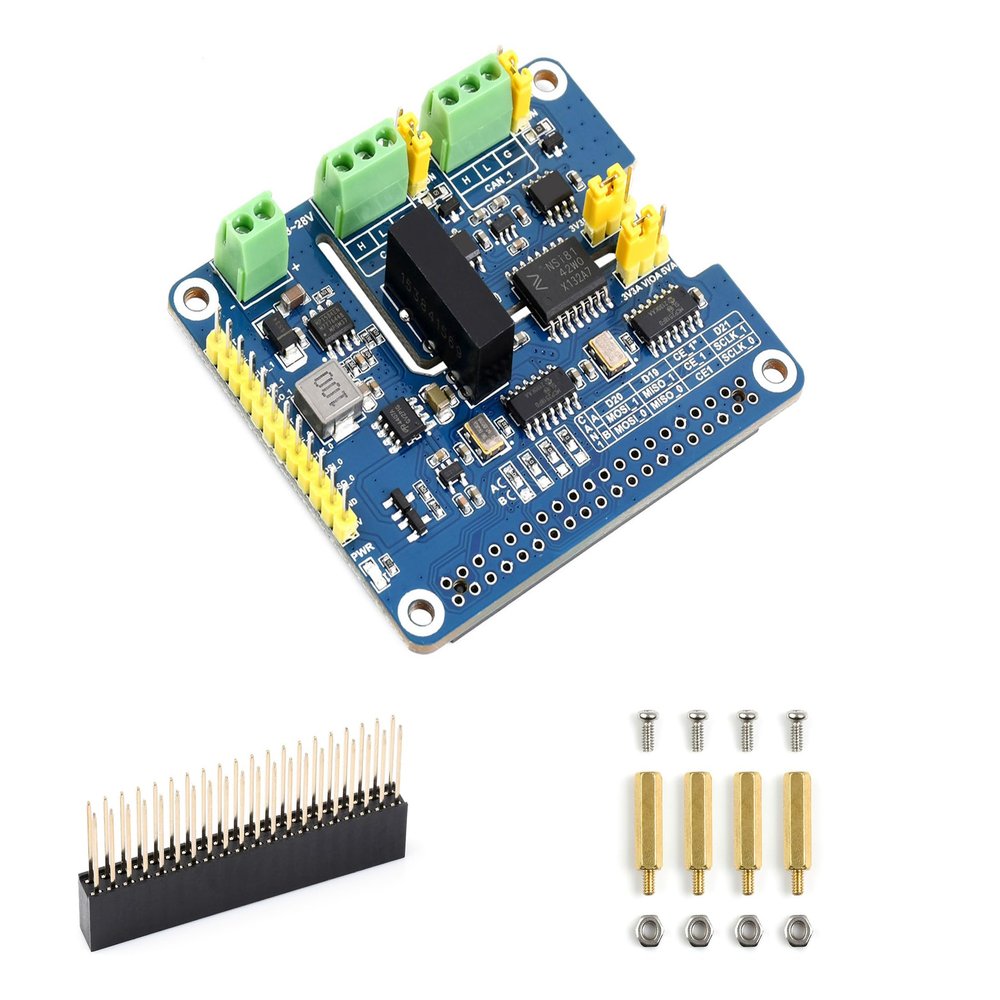

2-CH CAN FD HAT 2-Channel Isolated CAN FD Expansion HAT for Raspberry Pi 5/ 4B/3B+/3B/Pi Zero W/WH/Pi Zero 2W WH/and Jetson Nano, Support CAN FD, MCP2518FD CAN Controller + CAN Transceiver Chip

Description

• CompatibIe with Raspberry Pi and Jetson Nano--- The 2-CH CAN FD HAT is a 2-Channel CAN bus expansion HAT with Raspberry Pi 40PIN GPIO extension header,compatible with Raspberry Pi 5/Zero/Zero W/Zero WH/2B/3B/3B+/4B, Jetson Nano
• Support CAN FD protocols--- It will enable CAN bus for your Raspberry Pi, not only the original CAN 2.0 protocol, but also the CAN FD extension, with higher data throughput.
• Support 2-Channel CAN --- MCP2518FD CAN controller + CAN transceiver chip
• up to 4-CH CAN by cascading--- Onboard SPI0 / SPI1 chip select and interrupt pin configuration, avoid conflicting with other SPI slave devices, also used for cascading to support 4-ch CAN communication
• Electrical isolation circuitry --- SM24CANB TVS diode, ESD protection, transient peak voltage protection, safe & stable
• Flexible and handy jumpers---Easily select 3.3V / 5V operating voltage, or enable/disable 120 terminal resistor, via onboard jumpers

Overview
The 2-CH CAN FD HAT is a 2-Channel CAN bus expansion HAT designed for Raspberry Pi, supports CAN FD (CAN with Flexible Data-Rate). It will enable CAN bus for your Raspberry Pi, not only the original CAN 2.0 protocol, but also the CAN FD extension, with higher data throughput.

Thanks to multi onboard protection circuits, including 500W lightningsurge, ESD protection, short circuit protection, and electrical isolation, it make the communication more safe and more reliable.

Features
1.with Raspberry Pi 40PIN GPIO extension header, compatible with Raspberry Pi 5/Zero/Zero W/Zero WH/2B/3B/3B+/4B, Jetson Nano
2.Supports both traditional CAN2.0 and CAN FD protocols
3.Breakout SPI control pins, compatible withArduino/STM32
4.Onboard electrical isolation, up to 5KV isolated voltage, stable operation, higher anti-interference capability
5.Onboard lightningproof, ESD protection, short circuit protection, more safe communication
6.Onboard voltage translator, select 3.3V/5V operating voltage by jumper
7.Onboard 120 terminal resistor, configured by jumper

Comes with Online Development Resources and Manual (examples for Raspberry Pi/Arduino): bit.ly/3K0ABTq

Specifications
CAN controller: MCP2518FD
Control bus: PI
Power supply : External power supply terminal OR Raspberry Pi
Screw terminalinput voltage: DC 8~28V
Operating voltage: 5V
Logic level: 3.3V/5V
Dimensions: 65.0 56.5mm
