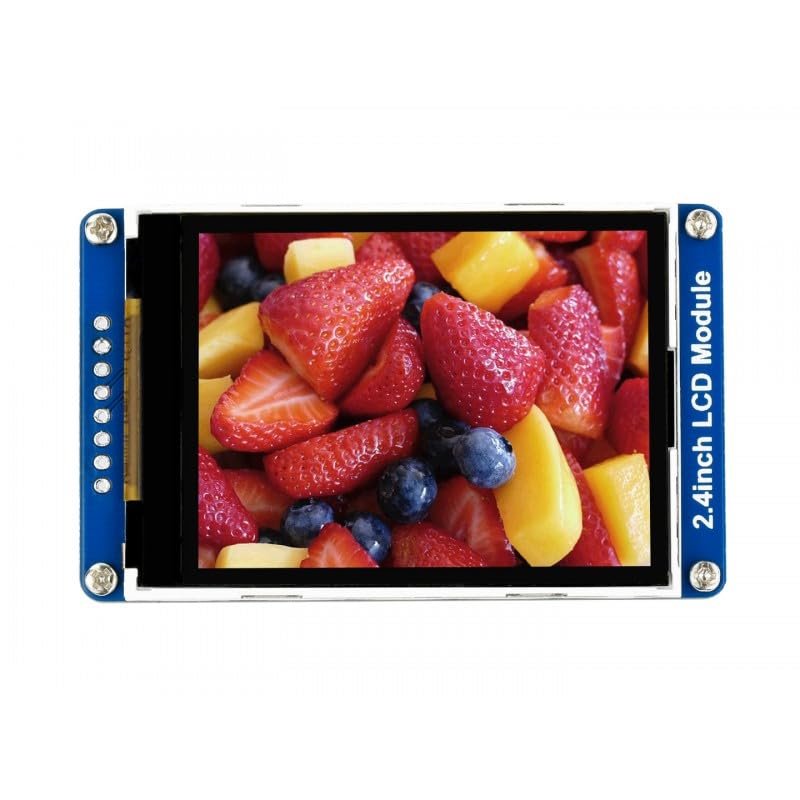

2.4inch LCD Display General Module Compatible with Raspberry Pi 240320 Pixels Resolution SPI Interface 65K RGB Colors Supports Arduino, STM32

Description

• This is an offical TFTscreen module of Waveshare .65K RGB colors, clear and colorful displaying effect
• SPI interface, minimizes required IO pins, supports controller boards like RPi/Arduino/STM32
• Comes with development resources (examples for RPi/Arduino/STM32).We provide complete supporting RPi demos (BCM2835 library, WiringPi library, and python demos), STM32 demos, and Arduino demos.
• As a 2.4inch TFT display module with a resolution of 240 * 320, it uses the SPI interface for communication.
• LCD has an internal controller with basic functions, which can be used to draw points, lines, circles, and rectangles, and can display English, Chinese as well as pictures.

Introduction
As a 2.4inch TFT display module with a resolution of 240 * 320, it uses the SPI interface for communication. LCD has an internal controller with basic functions, which can be used to draw points, lines, circles, and rectangles, and can display English, Chinese as well as pictures.
We provide complete supporting RPi demos (BCM2835 library, WiringPi library, and python demos), STM32 demos, and Arduino demos.

Specification
Operating voltage: 3.3V/5V (When using 5V power supply, the logic voltage is 5V; When using
3.3V power supply, the logic voltage is 3.3V.)
Interface: SPI
LCD Type: TFT
Controller: IL9341
Resolution: 240(V) x 320(H)RGB
Display Size: 36.72Hx 48.96Vmm
Pixel Size: 0.153Hx 0.153Vmm
Dimension: 70.5 x 43.3(mm)

Package Content
2.4inch LCD Module x1
PH2.0 8PIN 20cm cable x1
