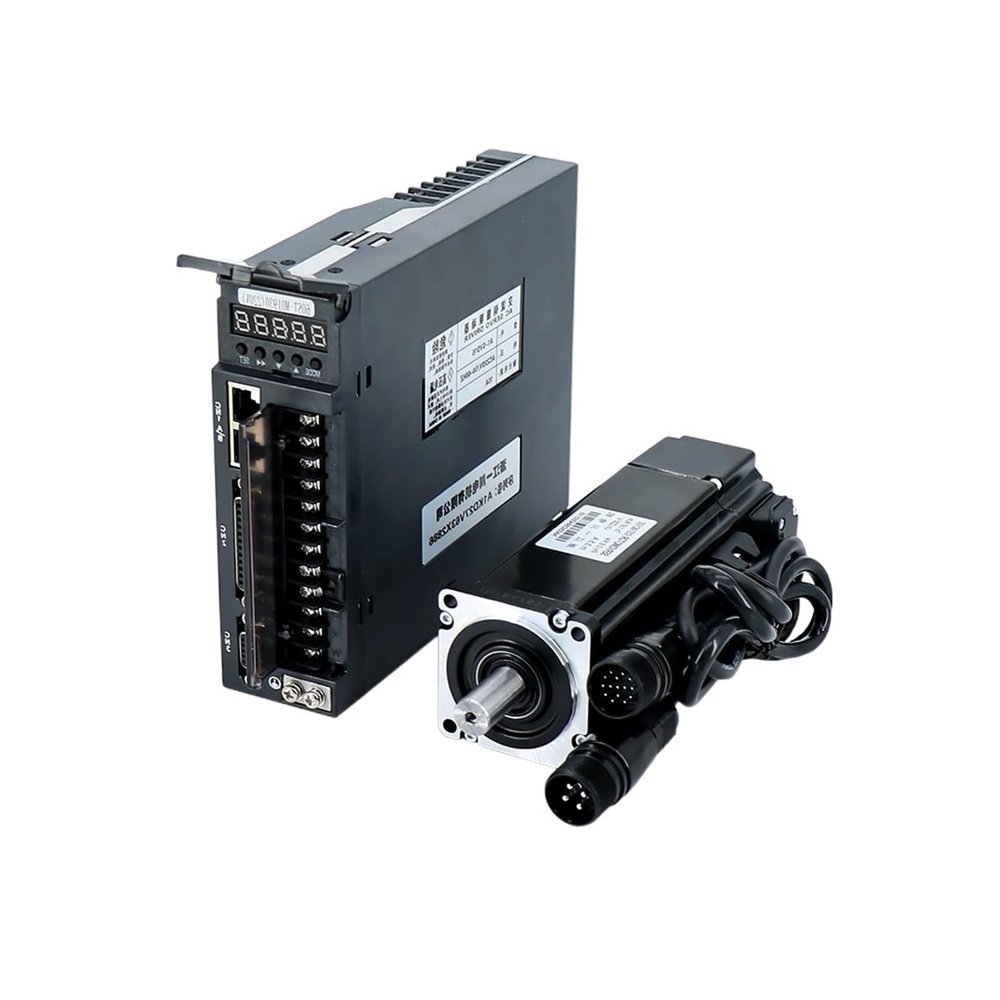

220V 600W 60ST-M01930 AC Servo motor 1.91N Single-Phase permanent magnet Matched Driver A1-SVD15 with RS-232 /RS-485 (Size : Without brake)

Description

• Motor Drives
• 220V 600W 60ST-M01930 AC Servo motor 1.91N Single-Phase permanent magnet Matched Driver A1-SVD15 with RS-232 /RS-485

Motor Drives
Motor Model
Power

Voltage
Driver
Cable Length
Brake
60ST-M01930
600W
1.9Nm
220V
A1-SVD-15A
AASD-15A
3/5/8Meter
Optional
80ST-M02430
750W
2.4Nm
90ST-M02430
110ST-M04030
1.2KW
4NM
220V
380V
A1-SVD-30A
AASD-30A
130ST-M10025
2.6KW
10NM
130ST-M15015
2.3KW
15NM
130ST-M15025
3.8KW
15NM
380V
AASD-25A
1* AC Servo Drive
1* 60servo motor
NOTE:Manual sent via email
WITH BREAK WITHOUT BREAK
1* 3M/5M/8M motor cable
1* 3M/5M/8M encoder cable
if English Manualneeded, please download it through this link
https://drive..com/file/d/1foIBUcwy4Iu9xyOOKk9rC2dLUWJoE-Mh/view?usp=sharing
1.Stable performance and fast response
2.Advanced heat dissipation design process
3.Applicable to various automation equipment
Rated Power(kw)
0.6
Rated Voltage(v)
220
Rated Current(A)
3.5
Rated Speed(rpm)
3000
Rated (N.m)
1.91
Peak (N.m)
5.73
Voltage Constant(V/1000min)
34
Coefficient(N.m/A)
0.55
Rotor Inertia(Kg.mz)
0.39*10^-4
Line-line Resistance ()
1.93
Line-line Inductance(mH)
10.7
Electrical Time Constant(Ms)
5.5
Weight(kg)
2.07
Insulation Class
Class B(130)
Safety Class
IP65
Number of Encoder Lines Selected
2500-Line Incremental encoder/ 20- bit incremental encoder/17-bit absolute encoder
The Operation of Environmental Conditions
Temperature: -20~+50
Humidity: Below 90% RH NO Dewing
Motor Winding Plue
Winding Load Wire
U(Red)
V(yellow)
W(blue)
PE(yellow-green/black)
Plug Serial Number
1 2 3 4
Communication Interface
PC signal input
Encoder signal input
Control circuit power supply
Main circuit power supply
External braking resistor interface
Motor power line
Ground terminal
Button
But
