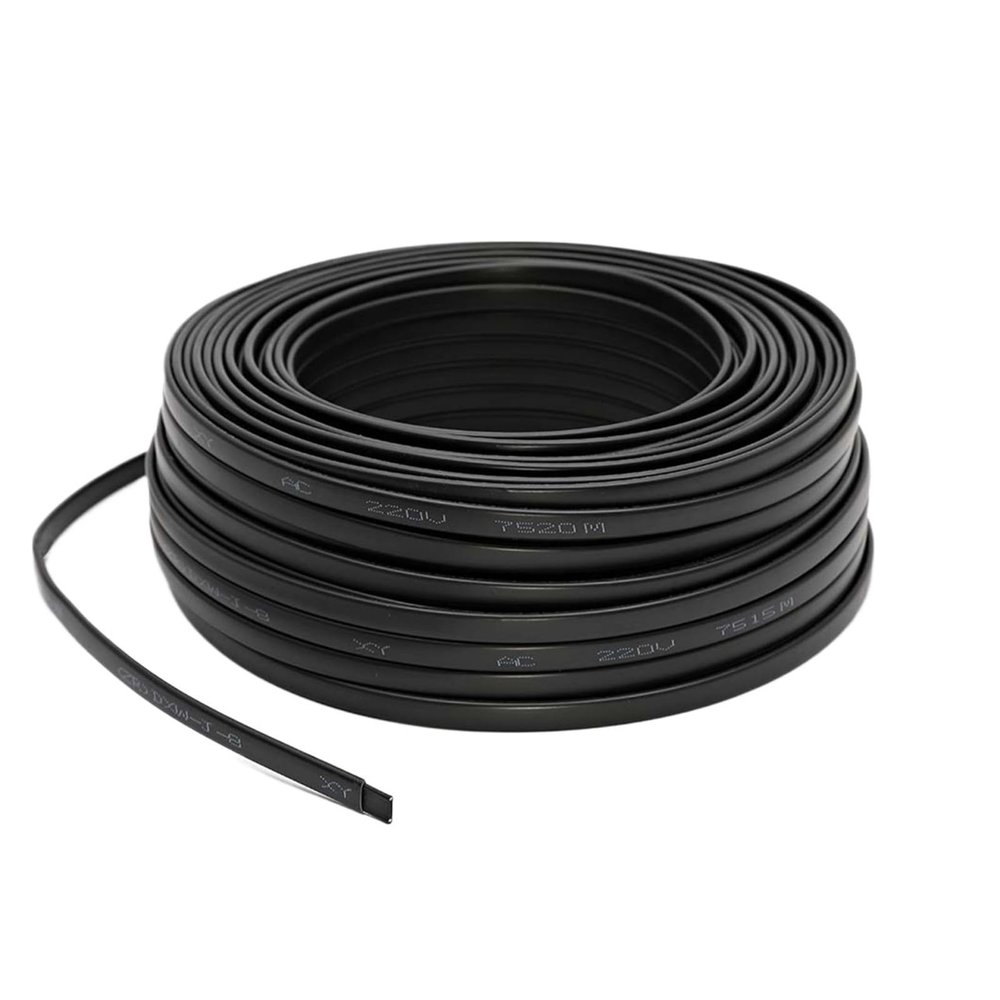

1pcs 8mm Width 20W/m Self-Regulating Heating Cable for Pipe Freeze Protection and Snow Melting(5M)

Description

• 1) Seal the end of the cable with heat shrinkable tube or other electrical insulating tape. DO NOT connect the two conductors together!
• 2) Connect the other end with cold wire or plug (for connecting to the power supply).
• 3) Wrap the heating cable on water pipes or fastening straight on pipes, both are ok. Put the whole cable on the pipes and fasten it every 30~60cm with thermal tape or aluminum tape.
• 4) Suggest to wrap a layer of rubber insulation on the pipe, enhance efficiency of the heating cable and save energy, also can protect the heating cables.
• 5) Connect or plug into 220~240V. The heat trace system is finished.

Self-regulating Working Principle:
>>This cable is suitable for household drinking water pipe, drain pipe freeze protection in winter and other heating applications.
>>The cable can self regulate the output power according to the temperature, it won't overheat, so the temperature controller is not necessary.
>>The cable is with PE jacket, and inner has the PE composite insulation layer, better water-proof .

Technical Datas:
Cable type: self-regulating heating cable
1. Working voltage: 200~240V AC
2. Rated power: 20W/m (at 10C degrees)
3. Max maintain temperature: 65C degrees
4. Max enduring temperature: 135C degrees
5. Width * Thickness: 8.1mm * 3mm
6. Min bend radius: 15mm
7. Conductor: tinned copper wire
8. Jacket: PE
9. Max circuit length: 30m
Structure:
1. Copper conductor
2. Conductive heating element
3. Inside extra insulation
4. PE outer sheath
Tips: max circuit length ~ 30 meters.
