1PC L9110S Modules Board 4 Channel Drive DC Motor Drive Board Motor Drive Module Smart Car 4-way Driver

Description

• Power supply: DC
• Model number: 3D0080
• Motor type: DC Motor
• Certification: NONE
• Origin: Mainland China

1 motor drive module comes with its own four L9110S chip.
2 Module supply voltage: 2.5-12V
3 Suitable Motor range: between motor operating voltage 2.5v-12V, the maximum operating current of 0.8A, the current smart car voltage and current market are within this range
4 can drive 4 DC motors or two 4-wire 2-phase stepping motor.

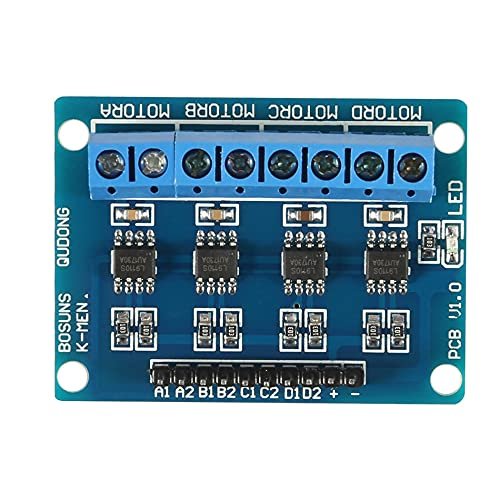

Two modules Interfaces
[10P black bent pin description]
1 A1 external microcontroller IO port
2 A2 external microcontroller IO port
3 B1 external microcontroller IO port
4 B2 external microcontroller IO port
5 C1 external microcontroller IO port
6 C2 external microcontroller IO port
7 D1 external microcontroller IO port
8 D2 external microcontroller IO port
9 + external voltage 2.5V-12V
10 - External GND
[Note] 8P PCB Terminal Blocks
1 MOTORA contact DC 2-pin, non-directional
2 MOTORB contact DC 2-pin, non-directional
3 MOTORC contact DC 2-pin, non-directional
4 MOTORD contact DC 2-pin, non-directional
Three modules for use
ON VCC, GND module power indicator light
A1 input high, A2 input low, MOTORA motor is transferred.
A1 input low, A2 input high, MOTORA motor reversal.
B1 input high, B2 input low, MOTORB motor is transferred.
B1 input low, B2 input high, MOTORB motor reversal.
High input C1, C2 input low, MOTORC motor is transferred.
C1 input low, C2 input high, MOTORC motor reversal.
High input D1, D2 input low, MOTORD motor is transferred.
D1 input low, D2 high input, MOTORD motor reversal
Item specifics:
Power supply: DC
Model number: 3D0080
Motor type: DC Motor
Certification: NONE
Origin: Mainland China
