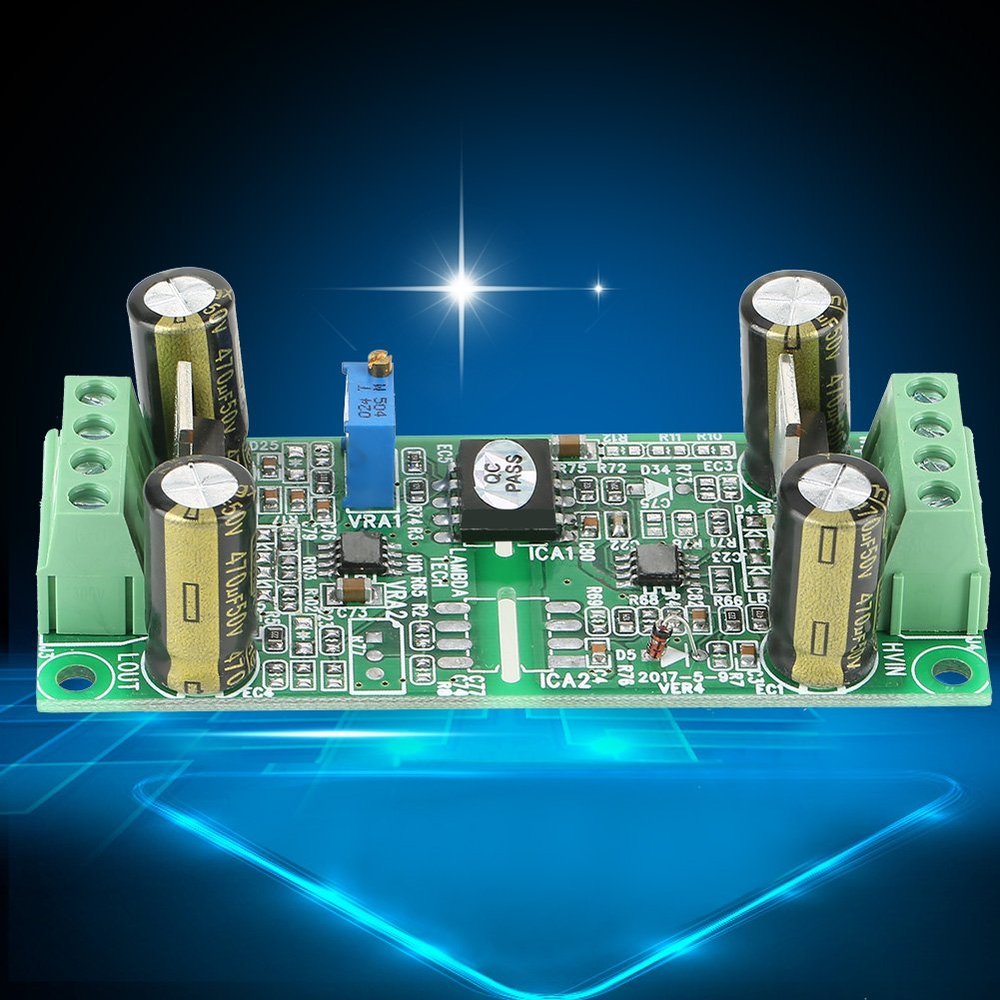

1pc 0-10V Anolog Quantities Voltage Isolati Annel Input DC 12-32V Analog Voltage Isolation Transmission Module 8.5X3.5X2.8cm

Description

• This is a channel isolation module, AI1: analog input first channel (0-10V voltage),: analog Input second channel (0-10V voltage).Because it is an isolation module, two completely independent power supplies are required.
• Main function- Main function is input 0-10V analog voltage signal,after isolation, output 0-10V analog voltage
• This isolation module need two complete independent DC12-32V power supply.
• The potentiometer is used to amend corresponding relation of output voltage. Output voltage can be fine adjusted and calibrated, normally it has already been calibrated.
• adjustableOutput voltage can be fine adjusted and calibrated, normally it has already been calibrated.The potentiometer is used to amend corresponding relation of output voltage.

1. This isolation module need two complete independent DC12-32V power supply.
2. Main function is input 0-10V analog voltage signal,after isolation, output 0-10V analog voltage signal.
3. Used to isolate high voltage or strong interference voltage or current (voltage) then transferred to PLC or controller MCU, isolating controlling end and controlled end, to assure stability and anti-interference ability of system.
4. It will has better performance if install this module and controller in a metal box and box is grounded.`
5. The potentiometer is used to amend corresponding relation of output voltage. Output voltage can be fine adjusted and calibrated, normally it has already been calibrated.

Spec:
Features:
This isolation module need two complete independent DC12-32V power supply.
Main function is input 0-10V analog voltage signal,after isolation, output 0-10V analog voltage signal.
Used to isolate high voltage or strong interference voltage or current (voltage) then transferred to PLC or controller MCU, isolating controlling end and controlled end, to assure stability and anti-interference ability of system.
It will has better performance if install this module and controller in a metal box and box is grounded.
The potentiometer is used to amend corresponding relation of output voltage. Output voltage can be fine adjusted and calibrated, normally it has already been calibrated.
Specifications:
Model: S-10V10V (single channel input)
Power Supply: 12V-32VDC
Input: 0-10V analog voltage
Output: 0-10V analog voltage
Conversion Accuracy: 3%
Conversion Speed: 200MS
Size: 8.5*3.5*2.8cm/3.3*1.4*1.1in
Weight: 39g(approx.)
Wiring:
1) Input Voltage Terminals:
HVIN: 12V-32V power supply positive
HGND: 0V power supply negative
AI1: Analog input first channel (0-10V voltage)
