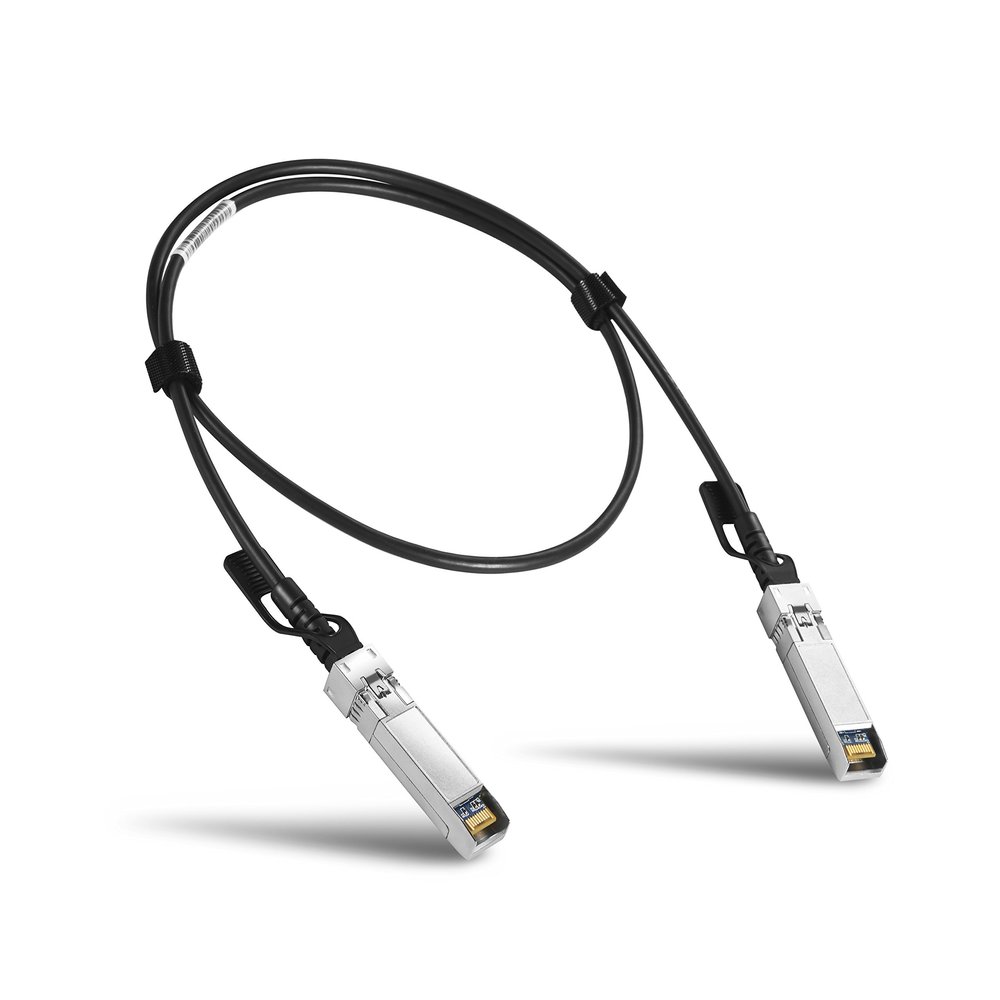

1M SFP+ DAC Cable, 10Gb SFP+ Storage Network Cable, Ethernet Copper Switch Cable, Compatible for Cisco SFP-H10GB-CU1M, Ubiquiti, D-Link, Juniper, Huawei, Mellanox, Mikrotik, Netgear, Supermicro

Description

• 100% compatible with Cisco SFP+ 10Gigabit switch, network adapter card, or network attached storage equipment,Ideal replacement Cisco SFP-H10GB-CU1M cable
• 10 GbE HIGH BANDWIDTH CABLE connects a switch, server, NIC, or transceiver for Network Attached Storage (NAS), Storage Area Network (SAN), and High Performance Computing (HPC) applications such as Fibre Channel, InfiniBand, and SONET
• PASSIVE SFP+ CABLE connects equipment up to 7 meters for high density networking environments with Top of Rack (TOR) or Middle of Row (MOR) switching requirements; Low power consumption SFP+ twinaxial cable provides a cost-effective fiber alternative to installing fiber transceivers and cables to connect a 10G network
• SFP+ Small Form Factor Pluggable Plus cable is hot pluggable with an SFP+ 20-Pin connector; Backwards compatible with 2.5G and 1GB SFP or SFP+ ports for integrating existing equipment into a 10 Gigabit switched network environment; Quick release latch provides a secure connection until the release tab is pulled
• SUPERIOR ENGINEERING of SFP cable includes 30 AWG wire and connectors with a metal die-cast backshell for superior EMI performance and minimal insertion loss; Copper SFP+ cable offers low power consumption and low latency to operate in a high bandwidth storage area network

Cisco SFP-H10GB-CU1M Compatible 10G SFP+ DAC Twinax Cable (1-meter, Passive, SFP+ to SFP+, 30AWG)
Overview
Transuton SFP+ active and passive twinax copper cable assemblies (DAC) were developed specifically as a cost-effective alternative to optical modules for short reach links in high-speed interconnect applications such as highperformance computing (HPC), enterprise networking and network storage markets. These assemblies support data transfer rates up to 10+ Gb/s per lane, meeting or exceeding current standards specifications.
FEATURES

Cable Color: Black
Cisco Compatible: SFP-H10GB-CU1M
Max Data Rate:10Gbps
Connector Type: SFP+ to SFP+
Minimum Bend Radius: 20mm
Cable Length: 1m (3.3ft)
Wire AWG: 30AWG
Jacket Material: PVC (OFNR)
Temperature: 0 to 70C (32 to 158F)
Protocols: 1x InfiniBand QDR, DDR, SDR, 10G Gigabit Ethernet, Fibre Channel
APPLICATIONS

Data com Network
10 Gigabit Ethernet
Data Centre
Servers, switches, storage
Transuton Advantage:
10G SFP+/25G SFP28/40G QSFP+/56G QSFP+/100G QSFP28 Direct Attach Copper (DAC ) twinax cable, and Active Optical Cable (AOC), passive or active, 100% OEM Compatible, and 100% Tested,5 Years Warranty,Free Returns.
