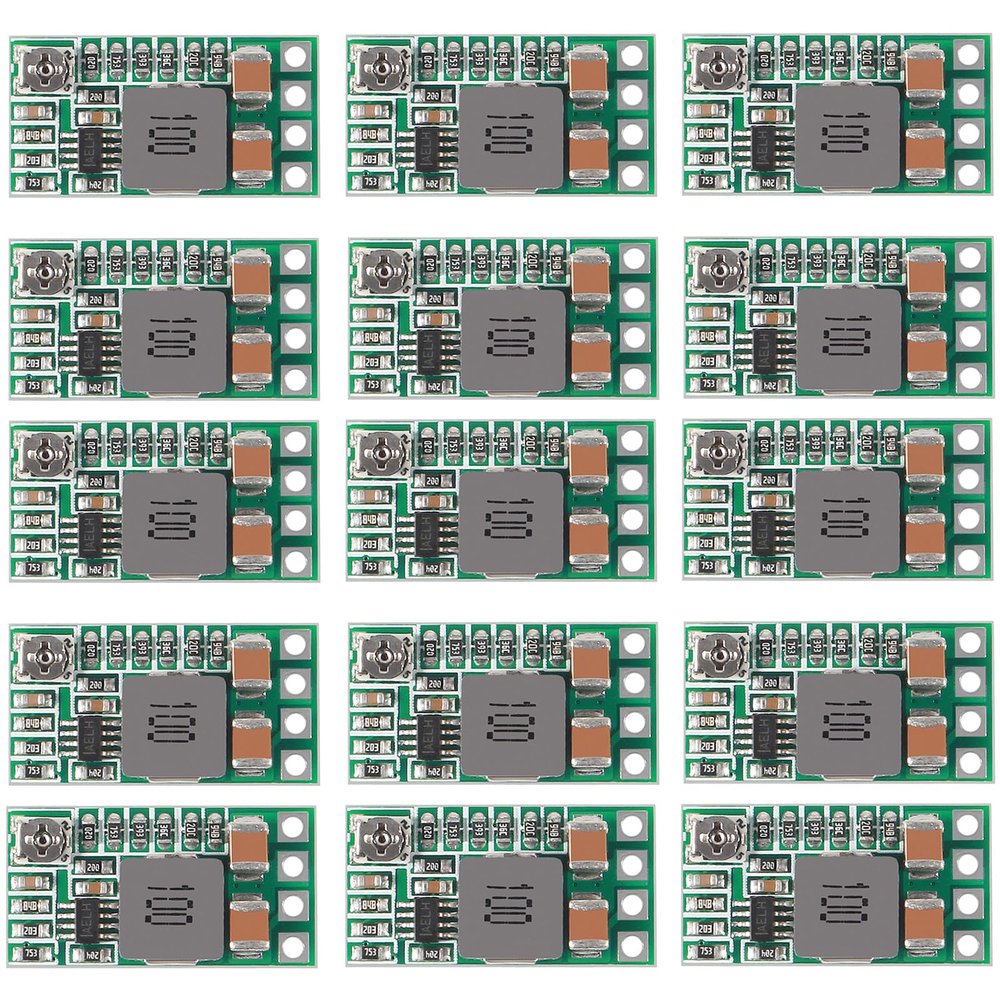

15Pcs 5V Regulator Module Mini DC-DC 4.2-24V to 5V 3A Step Down Power Supply Module Voltage Reducer Voltage Buck Converter Adjustable 1.8V 2.5V 3.3V 5V 9V 12V Power Supply Transformer Module

Description

• Voltage buck converter input voltage:DC 4.5-24V; Output Voltage:integration adjustable and fixed output,back side can choose fiexd output voltage, adjustable Range:0.8-17V,fixed voltage (1.8V 2.5V 3.3V 5V 9V 12V)
• 5V 3A step down power supply module uses synchronous rectification circuit conversion efficiency is very high, efficiency up to 97.5%
• DC-DC 12-24V to 5V 3A adjustable step down power supply module ultra-low quiescent current, quiescent current of 0.85 mA
• Output integrated adjustable and fixed voltage,you can get fixed output voltage by soldering the pot on the board.If the fixed output voltage is not what you want, you can adjust by potentiometer
• Note: The default output is an adjustable voltage. If you need to fix the output voltage, use a knife to cut the wire in the red circle on the product image

Input Voltage:DC 4.5-24V
Output Voltage:integration adjustable and fixed output,back side can choose fiexd output voltage
Adjustable Range:0.8-17V, fixed voltage (1.8V 2.5V 3.3V 5V 9V 12V)
Output Current:3A (max),actual testing input 12V output 1.5A
Transform Efficiency:97.5%(max) (6.5 to 5V 0.7A)
Switch Frequency:500KHz
Output Ripple Wave:20mV (12V to 5V 3A) 20m band width
Operating Voltage:-40 Celsius-85 Celsius
Output Overvoltage Protection:no
Static Current:0.85mA
Load Regulation: 1%
Voltage Regulation rate: 0.5%
Dynamic Response Speed: 5%200uS
Output Short Circuit Protection: Yes, please do not short circuit for a long time
Input Reverse Connection Protection: None, input reverse connection protection diode
Enable Control: Yes, high level works, low level stops working, high level is 2-5V, low level is about 0V. By default, it has an internal pull-up to the positive input
Wiring method: welding
Input method: welding
Output method: welding/pin header
Welding hole spacing: 2.54mm

VO+ outputs the positive terminal
GND Common negative electrode
IN+ input positive terminal
EN Enables a port

Package include:
15 x Step down power supply module
