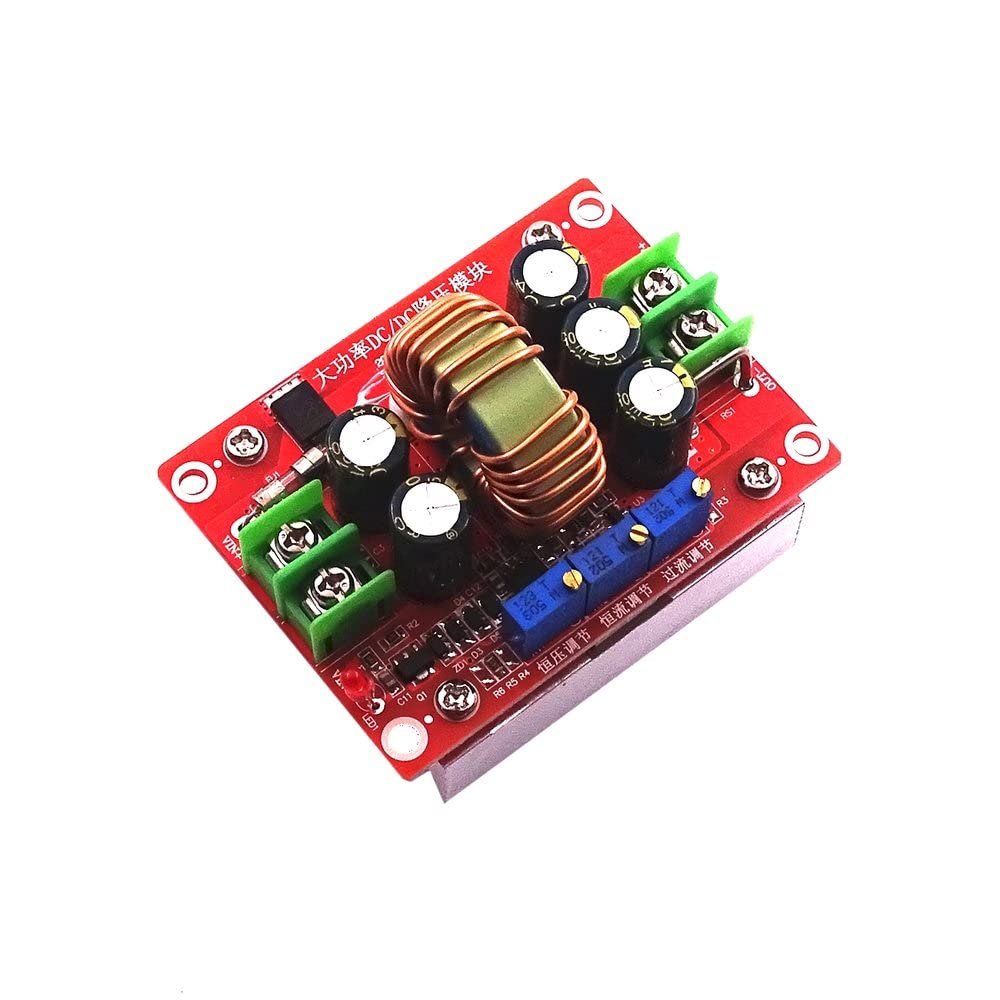

150W 12A DC-DC Adjustable CV CC Step Down Board Buck Converter Constant Voltage Current Power Module

Description

• 150W 12A DC-DC Adjustable CV CC Step Down Board Buck Converter Constant Voltage Current Power Module

Module Properties: Non-isolated buck module.
Input voltage: 4.5-32V.
Output voltage: 1-30V continuously adjustable (default value is adjusted to 5V).
Output constant current range: 0.3-12A (default value is adjusted to 3A).
Operating temperature: -40 ~ +85 degrees.
Working frequency: 380khz.
Conversion efficiency: up to 97% (efficiency and input, output voltage, current, pressure related).
Short circuit protection: Yes (short circuit current point protection adjustable short circuit).
Over-temperature protection: yes (turn off the output automatically after overheating).
Enter Reverse Protection: Yes.
Installation: four 3mm screws.
Wiring: terminal (with shell line output) Input V-IN, output V-OUT.
Module Size: 70mm X 52mm X 50mm (LxWxH).
The company is located in:
Application:
1. DIY power supply has a constant current function, not afraid of us in the short circuit, you can protect the load.
2. The power of electronic equipment.
3. For a variety of battery, according to different voltage and capacity of the battery charging voltage and charging current settings.
4. Powered by solar panels, for a variety of battery charging, with constant current, to prevent overcharging the battery, effectively protect the battery.
5. High-power LED, no series and parallel combination.
6. Supply of vehicles for your mobile phone or digital product.
The company is located in:
Package:
1 x 150W 12A DC-DC CV CC Step-Down Converter 4.5-32V 24V to 12V 19V 1-30V Step-Down Power
