130ST M10025 10Nm 2.6kw 2500rpm 220V 380V AC Servo Motor With T3A 20A T3M 15A Engine Drive For Engraver Milling Router (Size : 380V)

Description

• Motor Drives
• 130ST M10025 10Nm 2.6kw 2500rpm 220V 380V AC Servo Motor With T3A 20A T3M 15A Engine Drive For Engraver Milling Router

Motor Drives
Model
Rated Power
Voltage
Rated Speed
Brake
RS485
110ST-M04030
1.2KW
220v
3000rpm
optional
optional
110ST-M06020
1.2KW
220v
2000rpm
110ST-M05030
1.5KW
220v
3000rpm
130ST-M06025
1.5KW
220v
2500rpm
130ST-M10015
1.5KW
220v
1500rpm
110ST-M06030
1.8KW
220v
3000rpm
130ST-M07725
2KW
220v
2500rpm
130ST-M15015
2.3KW
220v
1500rpm
130ST-M10025
2.6KW
220V or 380v
2500rpm
130ST-M15025
3.8KW
220v or 380v
2500rpm
180ST-M27015
4.3KW
380v
1500rpm
180ST-M35015
5.5KW
380v
1500rpm
180ST-M48015
7.5KW
380v
1500rpm

Click the Model To See More Details
Manual Needed, Please contact with us,we would send you the PDF manual.

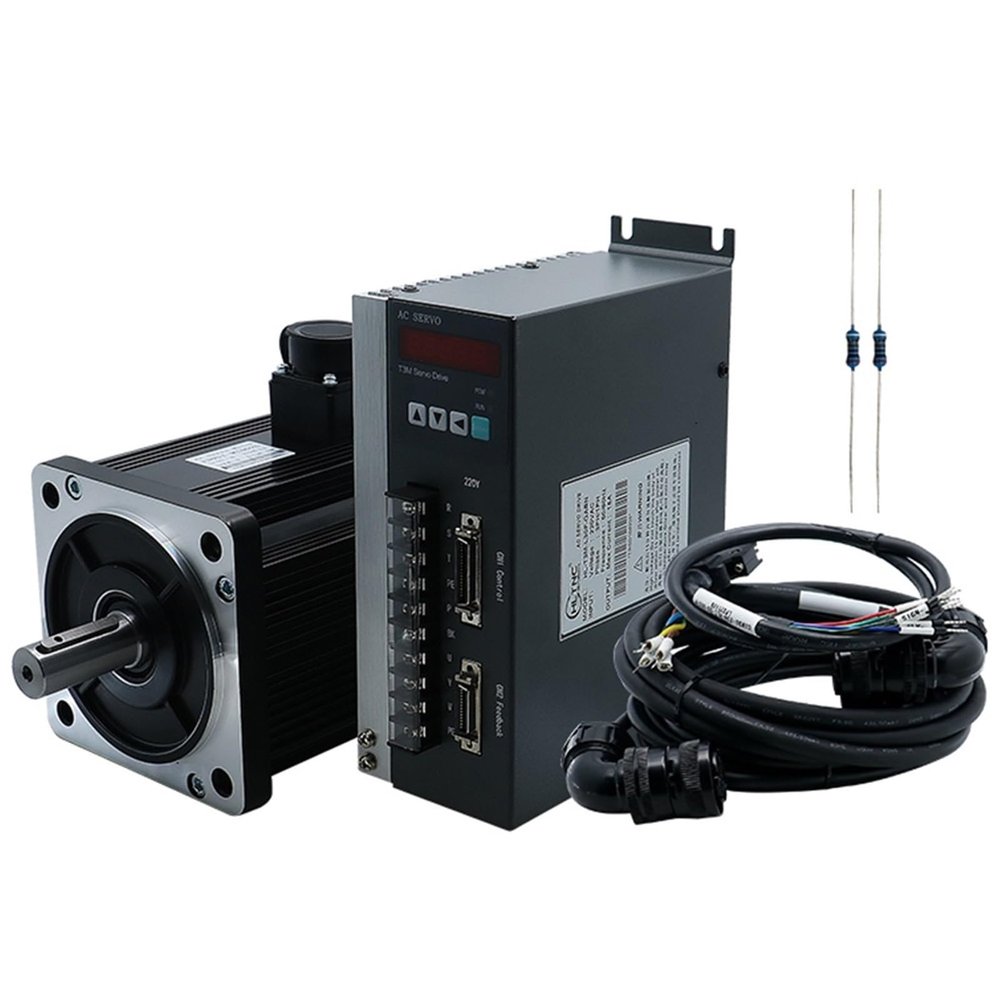

220v Kit (Without RS485)
1 pcs 2.6kw 220v 130ST-M10025 servo motor (Optional with Brakes)
1 pcs T3M-L30F-GABN Servo Driver
(Without RS485 Communication Port nor cooling fans)
1 pcs 3Meter Encoder Cable
1 Pcs 3Meter Power Cable
1 Pcs control signal Cable
2 Pcs 2K 1/4W resistance
380V kit (with RS485 Port)
1 pcs 2.6kw 380v 130ST-M10025 servo motor (Optional With Brake )
1 pcs T3A-H25F-RABF Servo Driver
(With RS485 Communication Port )
1 pcs 3Meter Encoder Cable
1 Pcs 3Meter Power Cable
1 Pcs control signal Cable
2 Pcs 2K 1/4W resistance
1. Stable performance and fast response
2.Advanced heat dissipation design process
3.Applicable to various automation equipment
130ST-M10025 SERVO MOTOR
(WITHOUT BRAKE)
130ST-M10025 SERVO MOTOR
(WITH BRAKE)
Moror Model
130ST-M10025
Rated Power (kw)
2.6
Rated Voltage(v)
220
Rated Current (A)
10
Rated Speed(rpm)
2500
Rated (N.m)
10
Peak (N.m)
25
Voltage constant(V1000/min)
70
coefficient (N.m/A)
1.0
Rotor inertia(Kg.
