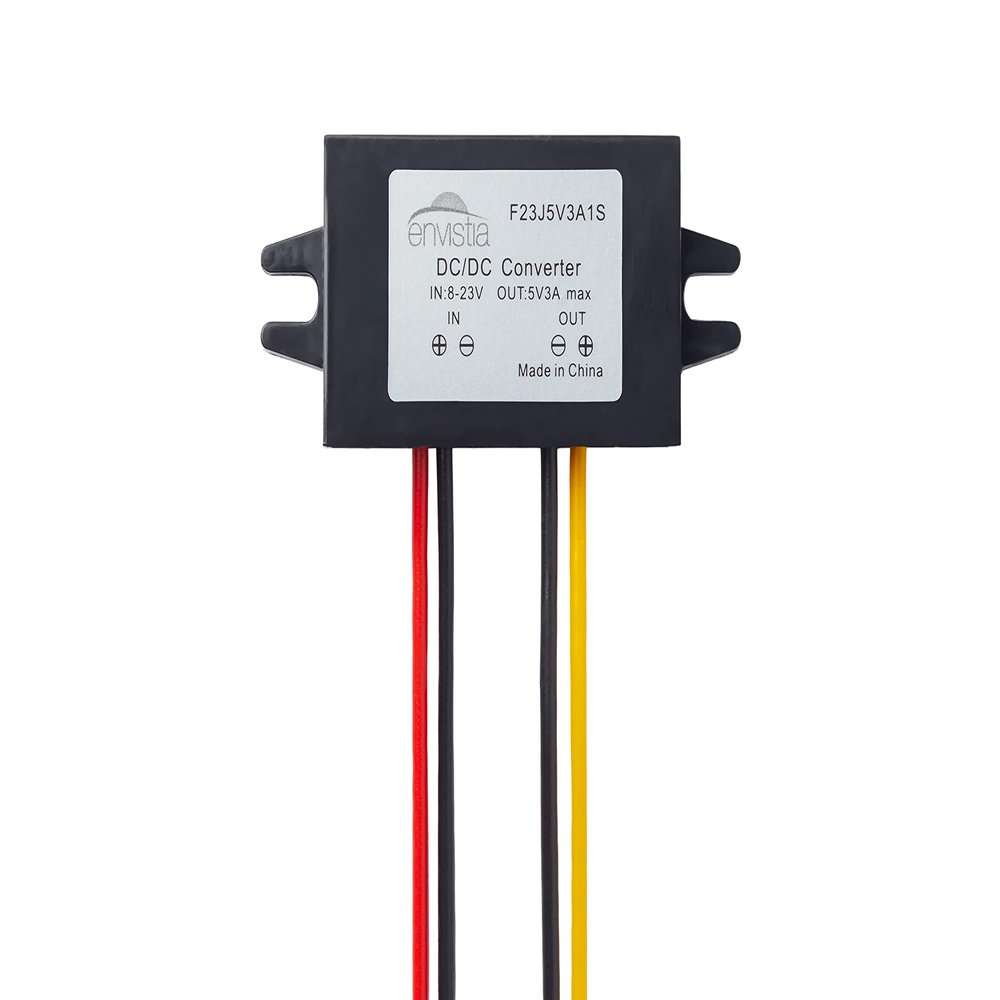

12V (8-23V) in to 5V Out DC-DC Converter Module 3A 15W with Flying Leads

Description

• Converts a 12V input voltage (will operate with any input voltage from 8V to 23V) to 5V DC output at up to 3A
• Flying lead (wire) inputs and outputs for easy connection to your circuit.
• Up to 15W output power (5V at 3A)
• Fully sealed and waterproof (IP68 Rating)
• Overload / over-current / over / low voltage protection, stable performance
• Excellent for converting from a car's 12V battery to 5V
• Red and black leads are +V and -V DC inputs, yellow and black leads are +V and -V DC outputs

This miniature DC-DC step-down converter module converts an 8V to 23V (nominally 12V) DC input to 5V DC output at up to 3A current (15W maximum). It features flying lead inputs and outputs for easy connection to your circuit. Specifications: Epoxy sealed waterproof housing (IP68) Lightweight, compact, convenient to use and transport Non-isolated With overload / over-current / over / low voltage protection, stable performance Auto recovery Input voltage: DC 12V nominal, will operate on any input voltage from 8V to 23V DC Maximum input current at 3A output: Approximately 1.25A at 12V input, 1A at 15V input Output voltage: 5V Maximum output current: 3A Maximum Output Power: 15W Efficiency: 85-90% typical, 95% max Voltage regulation: 1% Load regulation: 2% Ripple (Full load test): <150mV No-load current: <100mA Operating temperature: -25C - +60C Size (L x W x H): 46 * 27 * 14 mm / 1.81" x 1.04" x 0.55" (Length including mounting tabs is 64mm / 2.5") Weight: 36g / 1.3oz Case color: Black Waterproof rating: IP68 Input and output wire lengths: 13.5cm / 5.3" (approx)
