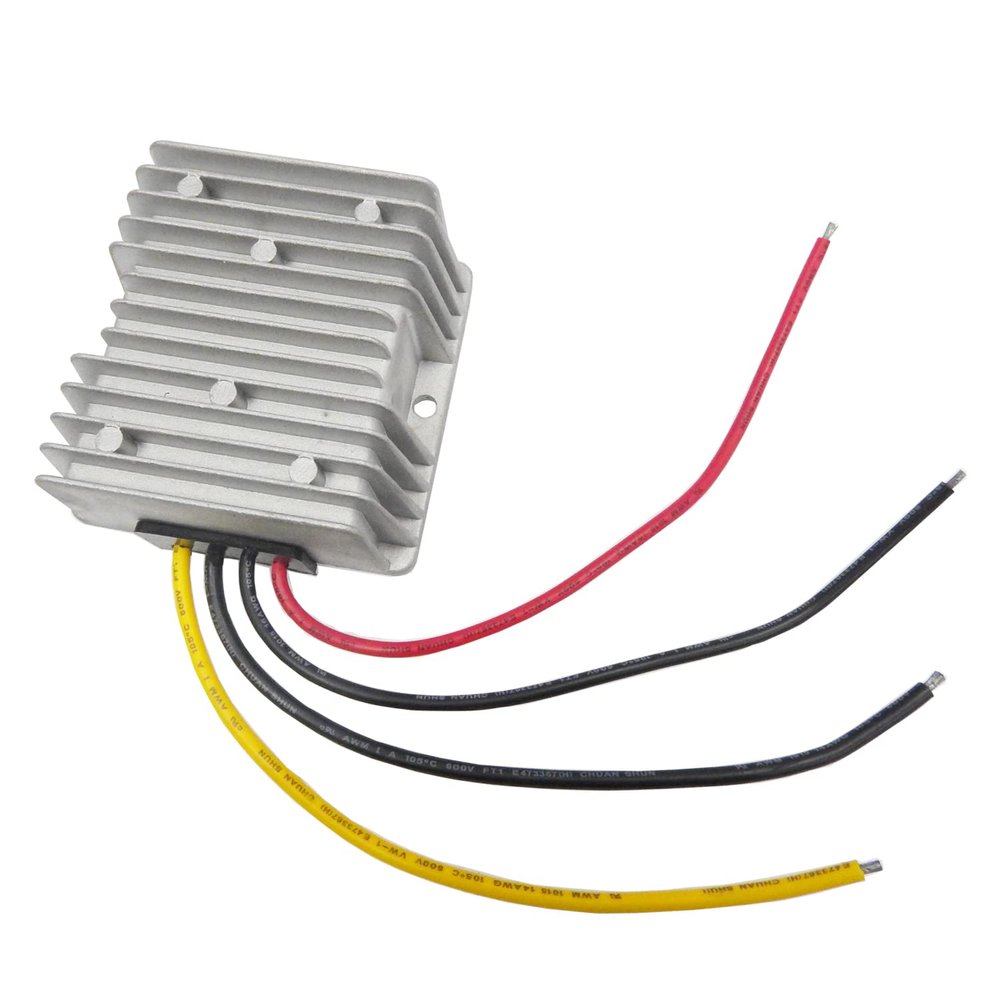

12V 24V Step Up to 48V DC-DC Converter Boost Voltage Transformer (3A 144W)

Description

• Input Voltage: DC 9V-30V / Output Parameters: DC 48V, 3A, 144W.Please ensure that the input power is greater than the load power. This product is only used for power conversion
• Wiring:Red: Input + Black: Input - Yellow: Output + Black: Output - Size: 4* 2 *3 inches / 74*74*32mm AWG:12
• High conversion efficiency:conversion efficiency up to 95%.Protection: High quality aluminum shell, Fast heat dissipation. Built in Overload, Overcurrent, Overvoltage, Overtemperature and Short circuit protection, IP67 waterproof and shockproof, and can return to normal state during operation
• Application: Widely used in golf cart, photovoltaic, electric power, monitoring system, automobile, electric bicycle motorcycle scooter, led, instrument, etc

Application:
New energy vehicles, golf carts, ships, DC motors, intelligent robots, electric bicycles, solar photovoltaic, industrial equipment, on-board equipment, LED equipment,Communication equipment,The converter outputs a standard 48V voltage and is not suitable for charging.

Multiple core advantages:
Overvoltage protection
Overcurrent protection
Short circuit protection
High temperature protection
Output anti reverse connection protection

Product model: 12V to 48V DC Step Up Converter
Output current: 3A
Output power: 144W
Brand: KAABEE
Input voltage: between DC (9-30) V
Output voltage: DC 48V
Voltage accuracy: 1%
Load regulation rate: 0.2%
Linear adjustment rate: 0.2%
No load current: 70mA
Ripple: 80mA
Conversion efficiency: 94% - 96%
Module nature: DC-DC non isolated power supply
Protection grade: IP67
Operating temperature: - 35 C~+80 C
Boundary dimension: 74 * 74 * 32
Net weight: 300g
Wiring mode: lead, line length 13CM
Repair time: 1 year
Service life: 100,000 hours

matters needing attention:
1. Make sure that all polarities are correct before wiring. Reverse connection will burn out the converter. It is recommended to connect a fuse at the input end (not provided by the manufacturer)
2. Ensure that the battery energy and voltage at the input end are sufficient, otherwise the converter will be in the protection state
3. Ensure that the installation environment is well ventilated to avoid high temperature protection and limit current output.
During normal operation of the module, allowance should be reserved for the power module. It is recommended to work below 90% of the rated power for a long time. If the module operates at full load
