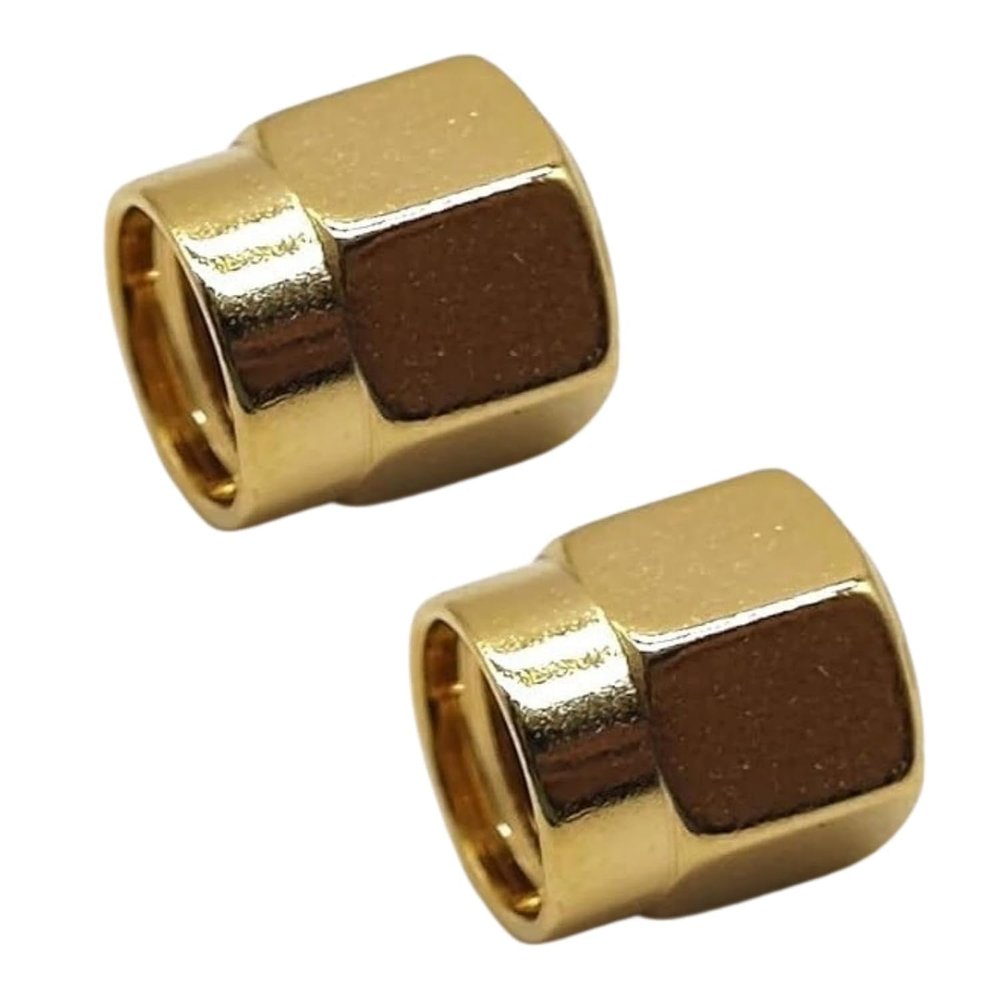

10PCS SMA Plug Dust Cap, SMA Female Jack Dust Cap Gold-Plated RF Coaxial Connector Protective Cap SMA Connector Accessories

Description

• Premium Materials: SMA connector accessories are made of copper material, with a gold-plated surface that is rust proof and corrosion-resistant
• SMA Plug Dust Cap: Excellent electrical performance, up to 18GHz, low reflection, and high safety
• SMA Coax Protective Cover: a threaded coupling mechanism with a compact design, low loss, and easy to use, used for SMA female connector adapters
• Universal Size: The SMA dust cap is the standard size, and the standard SMA adapter dust cap is a threaded connection

Electrical Characteristics:
Impedance50 ohm
Frequency Range: 0~12.4 GHz
VSWR: Straight type 1.3max / R/A type 1.5max
Dielectric Withstanding Voltage:1000 V rms min for RG142, RG405
750 V rms min. for RG316, RG402
500v rms min. for RG178
Working Voltage: 500 V rms max. for RG142, RG405
375 V rms max. for RG316, RG402
170 V rms max. for RG178
Center Contact Resistance 6.0 m (Milliohms max.)
Outer Contact Resistance 2.0 m (Milliohms max.)
Insultation Resistance 5 x 10 m (Megohms min.)
Mechanical Characteristics:
Coupling: 1/4-36 thread
Contact Retention: 15 in-lbs min.
Coupling nut torque: 30 in-lbs. min.
Durability(mating) 500 cycles (For Beryllium Copper Contact)
Environmental Characteristics:
Environmental Characteristics: -40C ~ +165C
Vibration: MIL-STD-202 Method204
Corrosion resistance: MIL-STD-202 Method 101

Specifications:
Product Name: SMA female jack dust cap
Material: Brass+Gold Plated
Type: RF coaxial connector accessories
Application field: Network communication
Product series: SMA series

The packaging includes:
10Pcs SMA Female Jack Dust Cap
