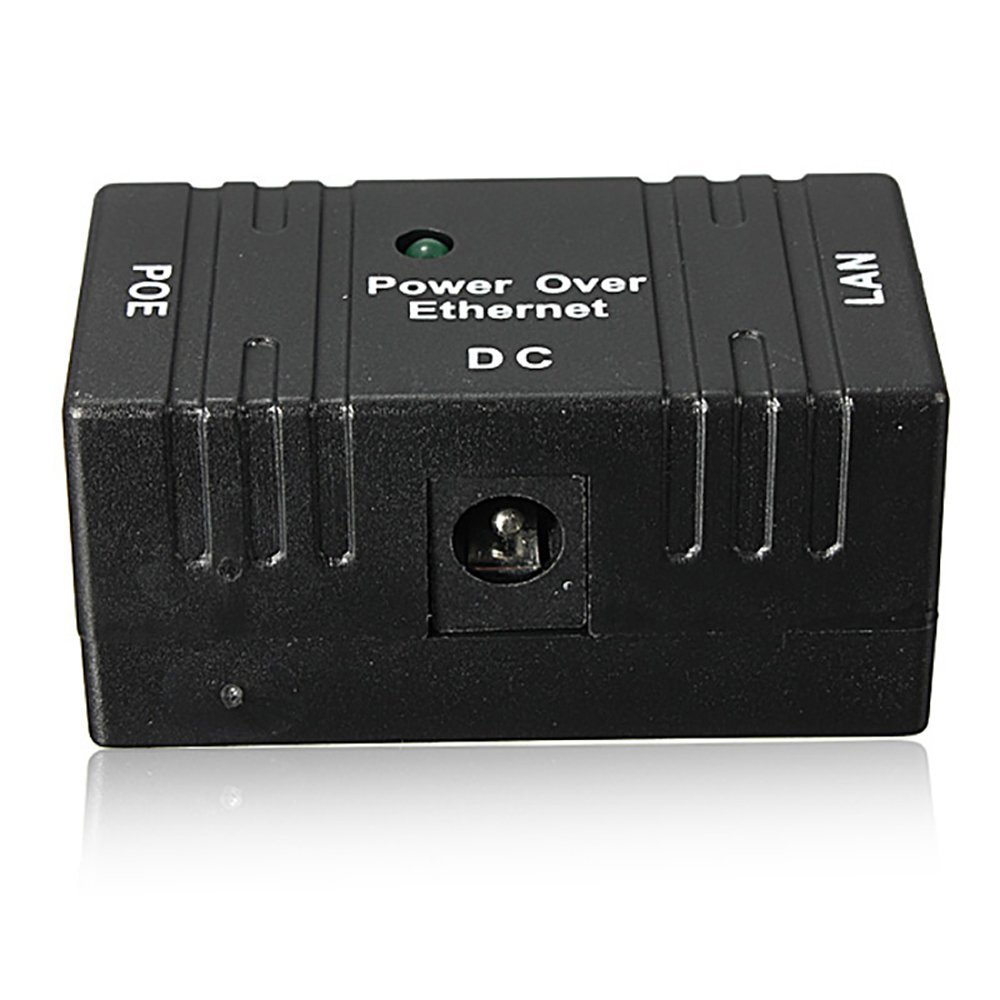

10/100 Mbp Passive POE DC Power Over Ethernet RJ-45 Injector Splitter Wall Mount Adapter for IP Camera LAN Network (Black)

Description

• Product Name: POE Injector / Splitter,Data PIN:1/2,3/6,Power PIN:4/5+ & 7/8-,Data in:Connects PC/HUB/Switch. Dimensions:50mm*27mm*24mm(L*W*H);
• High quality POE power over ethernet injector.Allows an Ethernet-enabled device to be placed away from a power outlet
• Easy to install and manage and easy to set up power supply for providing a better solution
• Passive DC Power Over Ethernet Injector Splitter use with IP security cameras, phones, wireless access points and other devices;
• Great for outdoor networking facility and low port density installations

Feature:

1.To achieve best performance of a Wireless LAN, the location of

Access Point(AP) must be carefully chosen.In most cases, finding

a power supply for AP is a common obstacle.

2.Power over Ethernet(PoE) technology provides the ideal power

solution to help overcome these obstacles.In Ethernet, four pairs

of C5 or C5E twisted pairs are used as the medium for transmission.

The actual data transmission, however,only takes up 4-pairs of wires

(pairs 1-8). PoE technology utilizesthe remaining pairs(pairs 4-5 and 7-8 to conduct electricity.

Specificiation:

1.Product Name:POE Injector / Splitter

2.Data PIN:1/2,3/6

3.Power PIN:4/5+ & 7/8-

4.Data in:Connects PC/HUB/Switch

5.Dimensions:50mm*27mm*24mm(L*W*H)
6
.Case of material:ABS 94V-0

7.Ethernet Data rate:10/100 Mbp

8.Ethernet Cable:TIA/EIA 568 Cat.5

9.Ethernet Cable Connector:RJ-45

10.Operating Temperature:0- 40 Degree

11.Storage Temperature:-40-70 Degree

12.Operating Humidity:10%to80% RH

13.Storage Humidity:5%to90% RH

Note this one is for 10M/100M,without adapter, with out earthnet and power connectiong cables.

Package include:

1 X PoE injector Splitter
